Multi-lane Packing Machine for Granules sugar 10 lines packing machine

Name:Multi-lane Packing Machine for Granules sugar 10 lines packing machine
Automation:Automatic granule filling and sealing
Suitable product:granules like sugar, spices, etc.
Filling volume:1-10g(can be customized)
Capacity:Max. 30-35 packs/min per minute for one single line
Total power:5.5kw
Total Weight:650kg
Dimensions:95014701750mm

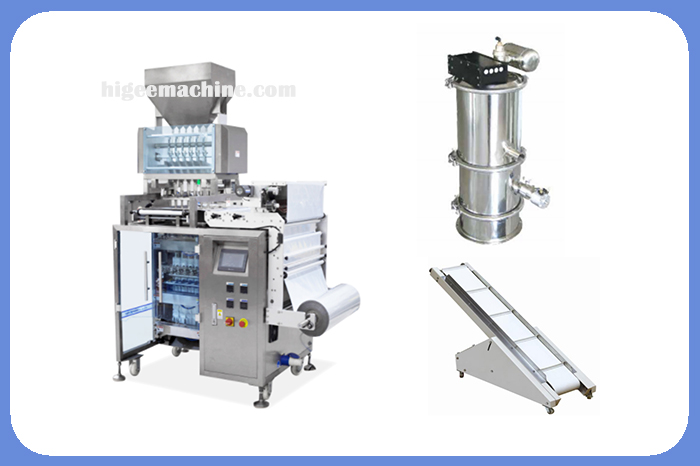

Equipped with:vacuum feeder, output conveyor.

Product Description

10 Lines Sugar Filling and Sealing Machine

Features:

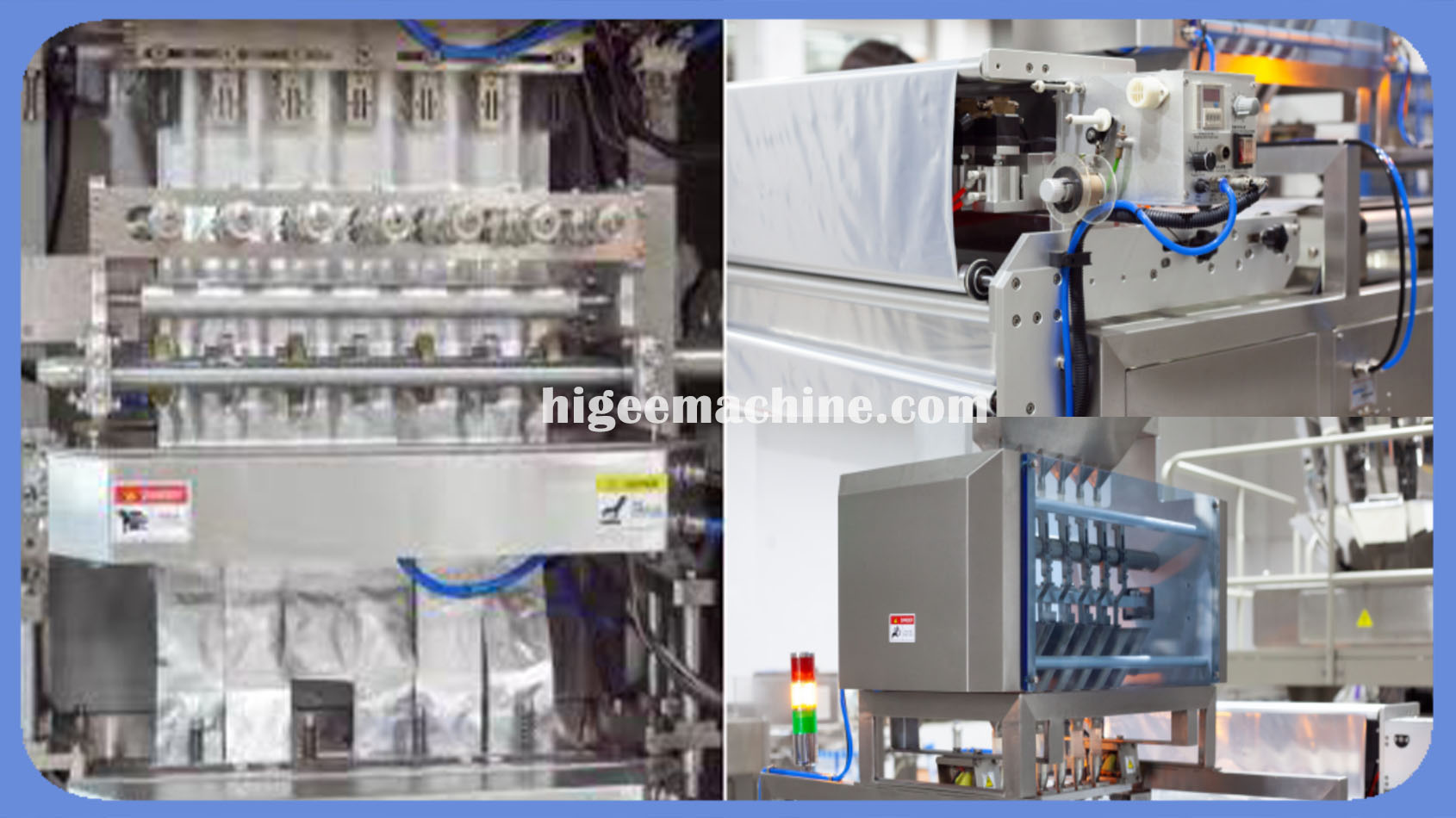

1. Intelligently complete the multi-line product packaging process, including automatic film feeding and cutting, forming, metering, filling, sealing, cutting, etc.

2. Advanced programmable PLC control system, human touch screen control interface and simple and quick parameter setting to adjust packaging parameters, and have the functions of fault self-alarm, self-shutdown, and self-diagnosis, easy to use and install;

3. Imported high-sensitivity electric eye can automatically track and locate the printing cursor position.

4. The screw filling method is controlled by a high-precision servo motor, which has high packaging accuracy and is easy to clean.

5. Advanced servo-controlled horizontal sealing up and down film system to ensure more accurate bag calibration.

6. The self-separating hob powder device is not easy to wear and the powder is accurate.

7. The high-precision temperature control system makes the seal more robust and beautiful;

8. The appearance design is generous and beautiful, and the open electric box makes the maintenance more convenient.

9. The host has a full range of security door protection, making it safer to use.



Performance parameter:

Working lines

10

Packing speed

Maximum 30-35 packs/min per minute for one single line

Bag size

Length: 45-120mm

Width: 35-90mm (varies according to the number of lines)

Film wide range

Up to 960mm

Precision

0.2% (varies according to product)

Roll film thickness

0.07-0.1mm

power supply

1N+PE/50HZ/AC220V/ 5.5KW

Dimensions

950*1470*1750mm

Machine weight

Net weight 650kg, Gross weight 780KG

Bag type

4 side seal bag




Vacuum feeder:

Conveying capacity: 100-700kg/Hr

Hopper size: 6L

Air pressure: 0.4-0.6Mpa

Air consumption: 360NL/Min



Output conveyor:

Item

Parameters

Conveying height

600mm

Total power

220V /0.75W

Maximum delivery volume

1-60m/min

Dimensions

900*400*600mm(L*W*H)

Material

Carbon steel spray paint/304/316 (optional) + belt

weight

81KG

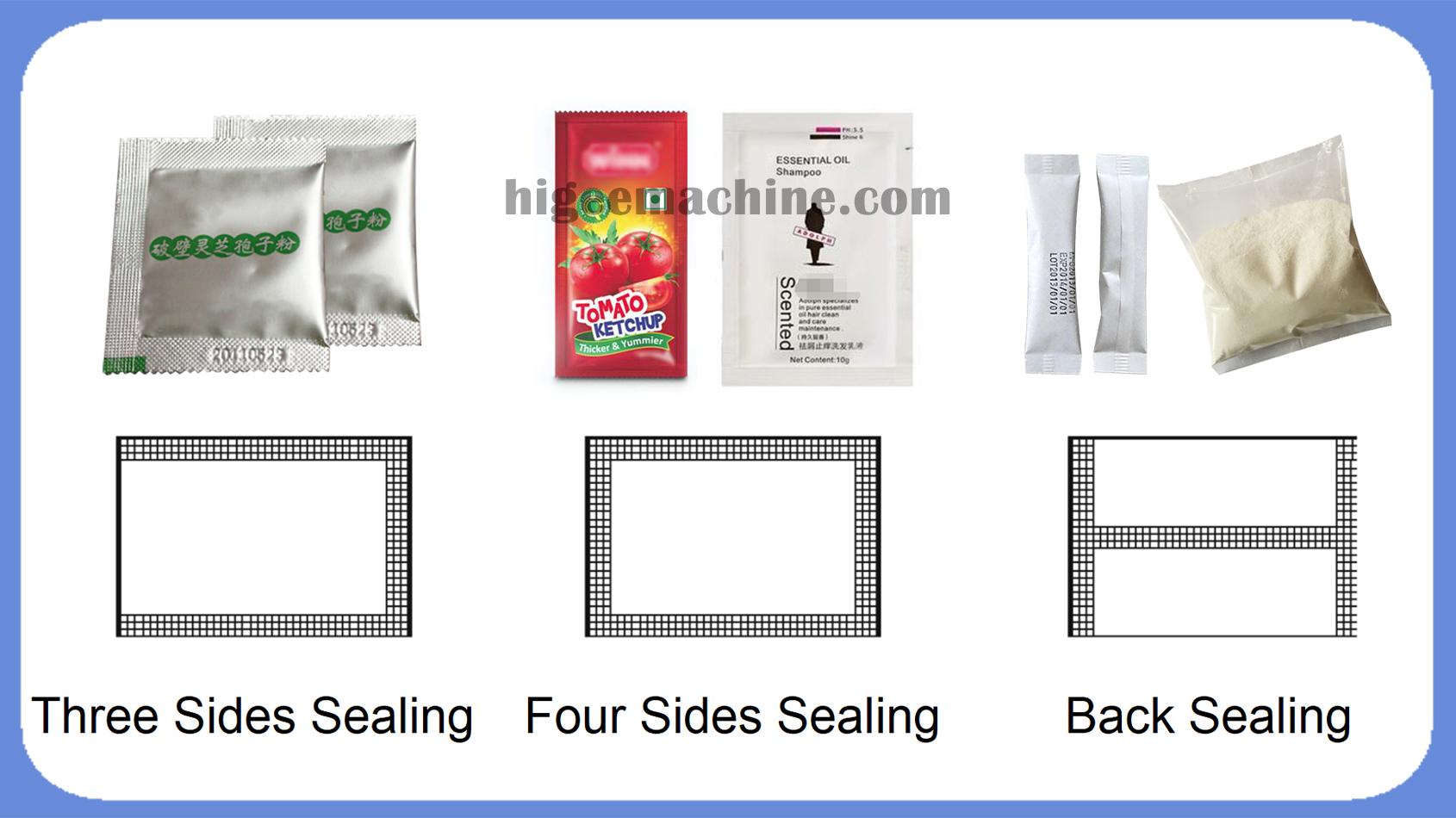

Optional sealing type:
