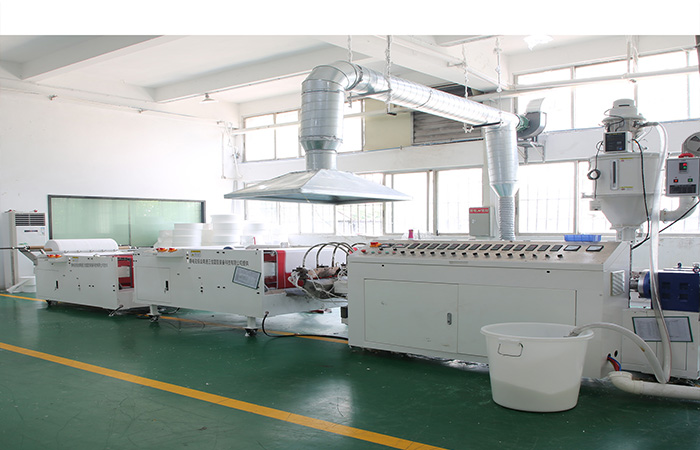

BFE95+ pp  melt blown nonwoven fabric making machine

Application

Introduction to ontology structure

fully automatic feeding→melt metering pump→melt filtration→spindle assembly→receiving network→static electret 1→static electret 2→online slitting→rewind online

The raw materials of polypropylene particles are divided into two types: single component and double component:

A. The single-component raw materials are those without any additives.

B. The two-component raw material is divided into polypropylene (pp) particles + electret masterbatch

The main role of the electret masterbatch is to concentrate static electricity and store static electricity, so as to achieve the absorption of fine dust particles.

The heating part of the machine is: extrusion system, melt metering pump, melt nozzle and hot air compressed air.

Specification

1. Spinneret

880 spinneret

Injection hole diameter 0.3mm

2. Fully automatic loading hopper

function: automatically feed the raw materials into the extruder, dry the raw materials, and let the water flow out of the hopper capacity 50kg

3. Host

Function: molten PP (polypropylene)

Heating circuit: ceramic heater

Including air heater 40kW

Electric cabinet 380V

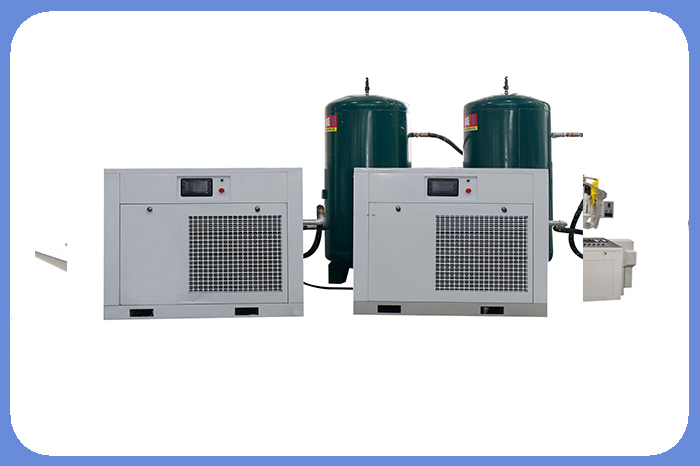

4. air compressor

Discharge volume/discharge pressure: 6.8/0.7, 6.2/0.8,

5.6/1.0, 5.0/1.2

Noise: 68±2

Power: 37kW*2

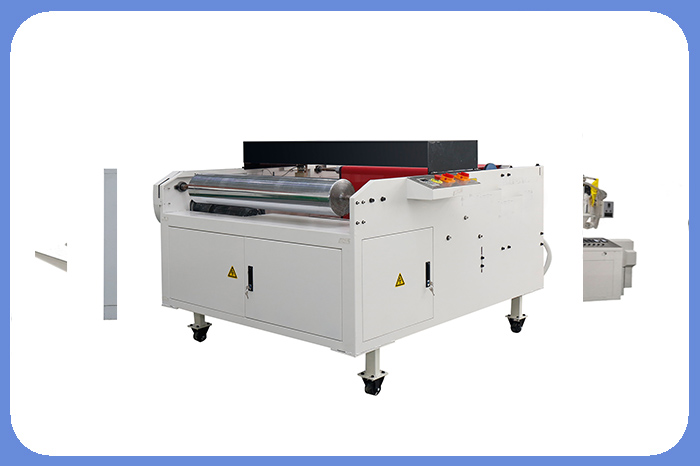

5. Net receipt Winder

Power supply: 220V power: 1kW

Side fan: Wind pressure: 378-315pa full pressure

Air volume 1395-2300m³/h

Power: 2.2kW

Slitting and winding: 1 active roller, slitting knife, transition roller and winding

Shaft winding diameter 600mm to 800mm

Motor 750W
