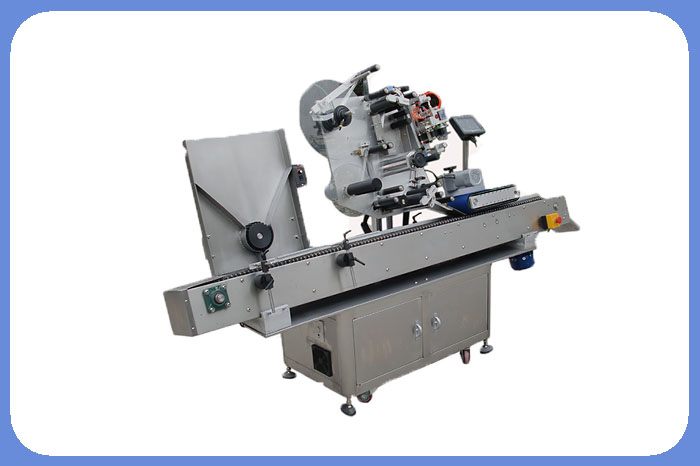

| Name: | 10ml round bottles horizontal sticker labeling machine for nail polish |
| Type: | Labeling Machine |
| Size of Labeling Machine: | 60-200pcs/min |
| Height of Object: | 25-95mm |
| Diameter of Object: | 12-25mm |
| Height of Label: | 20-90mm |
| Length of Label: | 25-80mm |
| Label Roller Inside Diameter: | 76mm |
| Label Roller Outside Diameter: | 360mm |
| Accuracy of Labeling: | ±0.5mm |
| Power Supply: | 220V 50/60HZ 2KW |
| Gas Consumption of Printer: | 5Kg/cm^2 |
| The brand of PLC; | MITSUBISHI（Japan） |
| The brand of sever motor: | Delta (Japan) |
Application
Horizontal small round bottle labeling machine is applicable for all kinds of round cylinder shape object in articles
for daily use(apothecary jar,ball-point pen,glue stick) , chemical(test tube,chemical bottle), pharmaceutical(penicillin
bottle,ampoule bottle,medicine bottle,injectional medicine), cosmetic(nail polish,lip stick,lipliner,pomade,eyeblack,
BB Cream,spray bottle)electronic(A small flashlight,thermometer,7th battery,currency detector) etc industry.
Technical Parameters
| Name | Vial Labeling Machine |
Labeling Speed |
60-300pcs/min |
Height of Object |
25-95mm |
Thickness of Object |
12-25mm |
Label Roller Inside Diameter |
76mm |
Label Roller Outside Diameter |
350mm |
Accuracy of Labeling |
±0.5mm |
Power Supply |
220V 50/60HZ 2KW |
Gas Consumption of Printer |
5Kg/m2(if add coding machine) |
Size of Labeling Machine |
2500(L)×1250(W)×1750(H)mm |
Weight of Labeling Machine |
150kg |
Configuration
| No. | Part | brand | quantity |
| 1 | PLC | MITSUBISHI(Japan) | 1 |
| 2 | Touchscreen | WEINVIEW(Taiwan) | 1 |
| 3 | labeling motor | DELTA(Taiwan) | 1 |
| 4 | labeling motor drive | DELTA(Taiwan) | 1 |
| 5 | Conveyor motor | GPG(Taiwan) | 1 |
| 6 | Conveyor motor gearbox | GPG(Taiwan) | 1 |
| 7 | Spoke bottle motor | GPG(Taiwan) | 1 |
| 8 | Spoke motor gearbox | GPG(Taiwan) | 1 |
| 9 | Conveyor / spokes governor | GPG(Taiwan) | 2 |
| 10 | object detect magic eye | OMRON(Japan) | 1 |
| 11 | optical fiber | OMRON(Japan) | 1 |
| 12 | Label outing detect magic eye | LEUZE(Germany) | 1 |

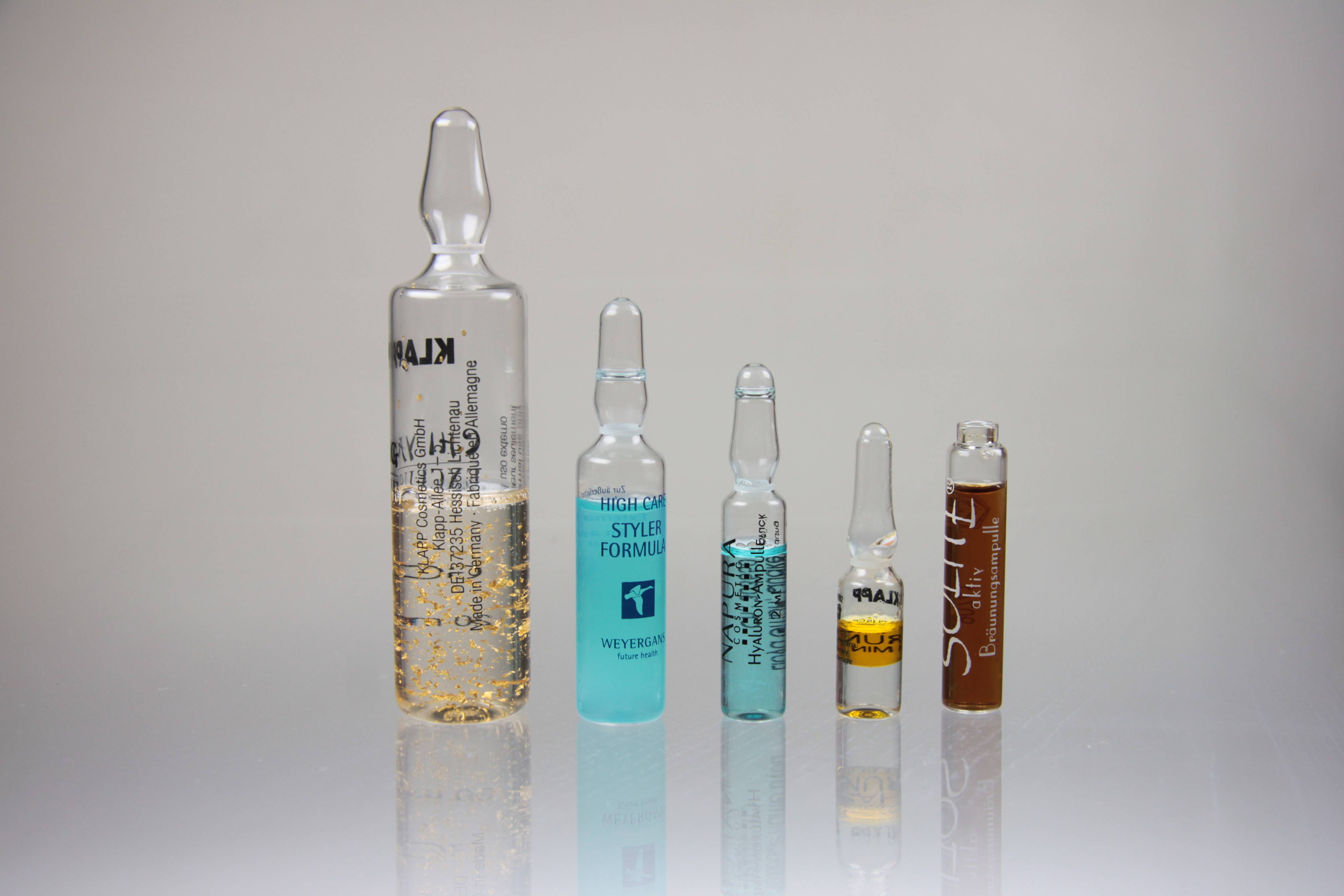

Clients' bottles and labels
Length diameter
1ml 47mm+/-2mm 1ml 10.75mm+/-0.15mm
2ml 57mm+/-2mm 2ml 10.75mm+/-0.15mm
3ml 62mm+/-2mm 3ml 12.75mm+/-0.15mm
5ml 68mm+/-2mm 5ml 14.75mm+/-0.15mm
10ml 87mm+/-2mm 10ml 17.75mm+/-0.15mm
20ml 100mm+/-2mm 20ml 22.75mm+/-0.15mm
Although the size of bottles is beyond the size of standard form, we also can modify the labeling machine according to the
clients' requirement.
