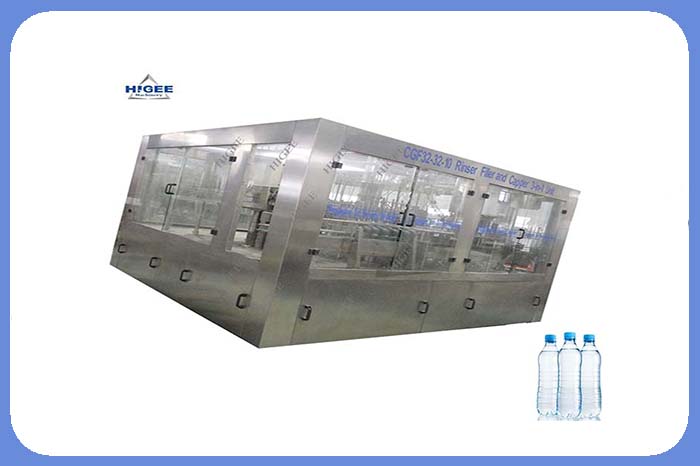

Name: | Good Quality Plastic PET Bottle Fruit Juice Filling Machine and beverage filling machine with factory price |
Driven Type: | Electric |
Material: | Stainless Steel |
Processing Types: | Automatic Bottle Filling Sealing Machine |
Usage: | Beverage Packaging |
Warranty: | One Year |
Name: | Good Quality Plastic PET Bottle Fruit Juice Filling Machine and beverage filling machine with factory price |
Application
Description
1. The rinsing machine using high-strength stainless steel bottles of springloaded folders, to ensure a stable reversal of the glass bottles. The nozzle is a plumlike structure can wash every corner of the sidewall and bottom to make the bottle clean.
2. Filling machine with springtype mechanical lifting equipment to upgrade glass bottles, large bearing support floundering in the vat and use of guide-rod in the orientation of the structure, there are pre-cover features.
3. Using high-precision mechanical filling valve, with cylinder liquid level and the back pressure controlled by a variable signal proportional. Fast, stable, accurate, to be vacuum one at a time.
Feature:
1.This machine has a compact structure, perfect control system, easy to operate and highly automated.
2.The parts contact with product is made of quality SUS, anti-corrosive, and easy to clean.
3.By adopting high speed filling valve, the liquid level is precise and no waste. That guarantees the demand of filling technology.
3.The main electric components, frequency, photoelectric switch, proximity switch, electric control valves all adopt imported components, which can ensure the quality performance.
4.The control system has many functions, such as control producing speed, cap shortage detection, bottle block automatic stop and production counting etc.
5.The electric components and pneumatic components are all introduced from world famous brand products.
Specification
Model |
1.RCGF 14-12-4 |
3.RCGF 18-18-6 |
4.RCGF 24-24-8 |
5.RCGF 32-32-10 |
6.RCGF 40-40-12 |
7.RCGF 50-50-15 |
8.RCGF 60-60-15 |
9.RCGF 70-70-18 |
10.RCGF 80-80-18 |
Washing No |
14 |
18 |
24 |
32 |
40 |
50 |
60 |
70 |
80 |
Filling No |
12 |
18 |
24 |
32 |
40 |
50 |
60 |
70 |
80 |
Capping No |
4 |
6 |
8 |
10 |
12 |
15 |
15 |
18 |
18 |
Production Capacity(500ml) |
4000 |
6000 |
10000 |
12000
|
15000
|
18000 |
25000 |
28000 |
35000 |
Motor Capacity(KW) |
2.2 |
3.5 |
4.5 |
6.0 |
7.5 |
9.5 |
11.2 |
15 |
18 |
Overall size |
2100*1500*2200 |
2650*1900*2400 |
2800*2200*2400 |
2900*2200*2500 |
3600*2700*2850 |
5300*3200*2850 |
