| Name: | automatic drinking mineral water filling machine and beverage filling machine for bottles |
| Driven Type: | Electric |
| Material: | Stainless Steel |
| Processing Types: | Automatic Bottle Filling Sealing Machine |
| Usage: | Beverage Packaging |
| Warranty: | One Year |
| Name: | automatic drinking mineral water filling machine and beverage filling machine for bottles |
Applications

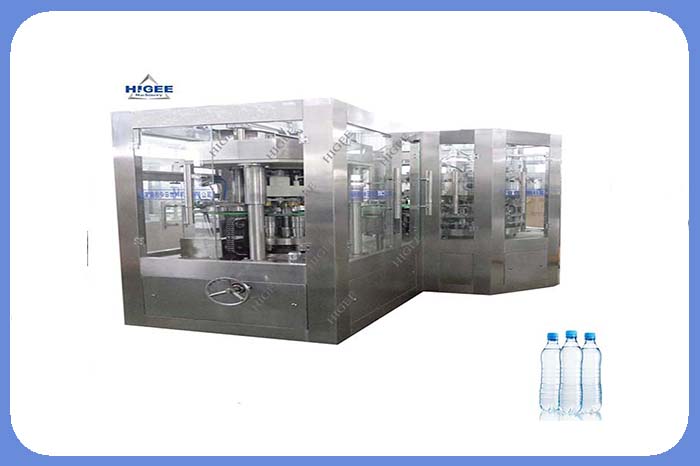

Water filling machine is used to fill pure water, mineral water and other non-carbonated beverage.The machine is widely used in the production of beverage because of its characteristics of automation, high intelligence, stable and reliable machine performance, simple structure, high production efficiency, low energy consumption and no contamination by intermediate links.
Feature
1.Man-machine interface control, easy to operate
2.Automatic billet, the billet, take the bottle, row bottles
3.Mold change quickly
4.High degree of automation to reduce bottle contamination
5.Equipment performance is stable and reliable
6.Easy to maintain
Description
Air delivery machine
Rinsing machine
Filling machine
Capping machine
Technical Parameters
Model(CGF) |
14-12-4 |
18-18-6 |
24-24-8 |
32-32-10 |
40-40-12 |
50-50-15 |
60-60-15 |
70-70-18 |
80-80-18 |
Rinsing heads |
14 |
18 |
24 |
32 |
40 |
50 |
60 |
70 |
80 |
Filling heads |
12 |
18 |
23 |
32 |
40 |
50 |
60 |
70 |
80 |
Capping heads |
4 |
6 |
8 |
10 |
12 |
15 |
15 |
18 |
18 |
Capacity(BPH) |
4000 |
6000 |
10000 |
12000 |
18000 |
22000 |
25000 |
28000 |
35000 |
Motor power(KW) |
2.2 |
3.5 |
4.5 |
6.0 |
7.5 |
9.5 |
11.2 |
15.0 |
18.0 |
Dimensions |
2100*1500*2200 |
2300*1700*2400 |
2800*2200*2400 |
2900*2200*2500 |
3600*2700*2850 |
5300*3200*2850 |
5600*4500*2850 |
6000*4800*2850 |
6500*5000*2850 |
