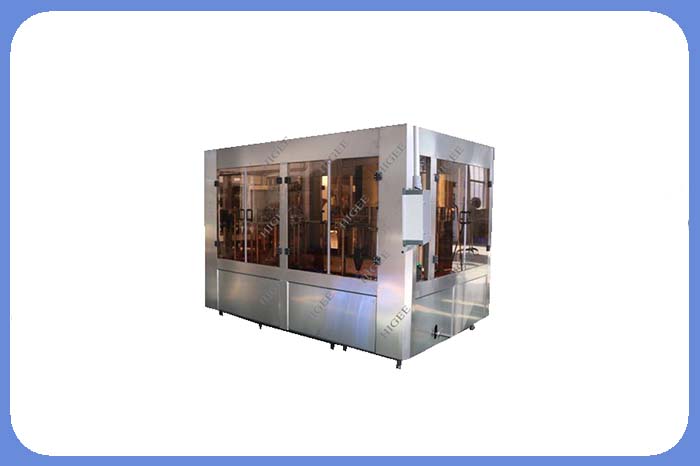

| Name: | Grain Orange Juice machine/juice filling machine |
| Driven Type: | Electric |
| Material: | Stainless Steel |
| Application: | Pure Water|mineral Water|beverage |
| Product Name: | Grain Orange Juice machine/juice filling machine |
Description:
1.Rachel fruit juice filling machine 3 in 1 is possible to realize manmachine conversation because of applying touch screen for operation
2.This grain juice bottling machine has washing ,grain filling,juice filling ,capping four functions in one body.
3.Grain filling is quantitative by new measuring cup; ensure every bottle of drink is uniformity.
Feature:
1) Bottle is entered by air conveyor,the speed of bottle entering is fast and bottle shape isn’t changed because of adopting hanging clamping bottleneck way.
2) Adopting clamping bottleneck way to wash bottle mouth and avoid touching screw muth,adopting clamping bottleneck way in the whole conveying process.When bottle
type changes,you need to change the board related with bottle diameter .
Specification:
Model |
CGF16126 |
CGF18186 |
CGF24248 |
CGF323210 |
Heads of washing,filling,sealing |
16-12-6 |
18-18-6 |
24-24-8 |
32-32-10 |
Production capacity |
3000-4000BPH |
5000-7000 |
8000-12000 |
12000-15000 |
Suitable bottle diameter |
φ=50-100mm, H=170mm, 330-2500ml |
φ=50-100mm, H=170mm, 330-2500ml |
φ=50-100mm, H=170mm, 330-2500ml |
φ=50-100mm, H=170mm, 330-2500ml |
Spraying pressure |
0.2-0.25Mpa |
0.2-0.25Mpa |
0.2-0.25Mpa ³ |
0.2-0.25Mpa |
Motor power |
2.2kw |
2.5kw |
3kw |
5.5kw |
Stainless steel |
SS304 |
SS304 |
SS304 |
SS304 |
Electric voltage |
380V50Hz |
380V50Hz |
380V50Hz |
380V50Hz |
PLC |
Mitsubishi |
Mitsubishi |
Mitsubishi |
Mitsubishi |
Frequency converters |
Mitsubishi |
Mitsubishi |
Mitsubishi |
Mitsubishi |
Touch screen |
Mitsubishi |
Mitsubishi |
Mitsubishi |
Mitsubishi |
Circuit contactor |
Siemens |
Siemens |
Siemens |
Siemens |
overall dimension |
2400*1600*2500 |
2500*1800*2500 |
3100*2300*2800 |
3800*2800*2900 |
Weight |
2500kg |
3500kg |
4500kg |
6500kg |
