New design for small juice glass bottle filling machine

Name:New design for small juice glass bottle filling machine
Driven Type:Electric
Material:Stainless Steel
Processing:Bottle Packing Machine
Name:New design for small juice glass bottle filling machine

Product Description

Description:

Machine introduction

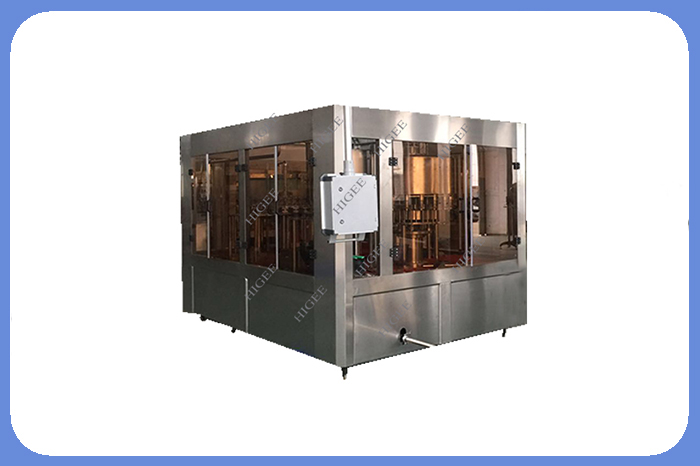

The Glass Bottle Juice Filling Machine Integrating with washing, filling and sealing, it has temperature control device for heat
filling and realizes full automation in the whole process, suitable for non-carbonated drinks, such as, apple juice ,orange juice and etc.



The bottle types applicable for various parts are easily, conveniently and rapidly adjustable. It adopts new micro-negative pressure filling,stable and reliable. Compared with the machines of the same specification, the benefit of the machine is larger.



The whole machine is controlled by PLC with touch-screen as the human-machine interface. The amount of the drinks in the storage tank can be controlled automatically. The filling and capping will be stopped automatically when thereis no bottle. When bottles are cramped wrongly or when caps are not available, the machine can be stopped automatically.
2.The frequency changing technology is used to adjust the operation speed steplessly. The production capacity can be displayed digitally and can be adjusted conveniently.

Feature:

1. the juice machine can carry out washing pulp filling, liquid juice filling and capping in one machine.

2. the juice machine is very convenient to change diverse sizes of bottles by means of advanced bottle neck clamping & bottle suspending technology.

3. Advanced programmable PLC is equipped to control the main machine. Working speed can be adjusted by frequency conversion device.

14. Main electronic components are all from famous international enterprises, such as SIEMENS, Schneider.

Model:

CGFR18-18-6

CGFR24-24-8

CGFR32-32-10

CGFR40-40-12

capacity :500ml

6000

8000~10000

12000

16000

bottle shape:

roud or square

PET bottle: (mm)

(Bottle Diameter):φ50-.φ110mm (Height):150-340mm

cap:

PE srew cap

filling precision:

≤±5mm

illing pressure:(Mpa)

0.15-0.35

0.15-0.35

0.15-0.35

0.15-0.35

rinsing pressure:(Mpa)

0.2-0.25

0.2-0.25

0.2-0.25

0.2-0.25

filling volume :(L)

3.5

4

6

8

overall size:(mm)

2450*1800 *2350

2780*2200 *2350

3600*2650 *2350

3800*2950 *2400

weight: (kg)

3500

4500

5500

6500
