| Name: | RCGF40-40-12 2018most popular grape juice filling machine Exported to Worldwide |
| Driven Type: | Electric |
| Material: | Stainless Steel |
| Application: | Pure Water|mineral Water|beverage |
| Product Name: | hot machine,filling equipment company,hot fill packaging |
Description:

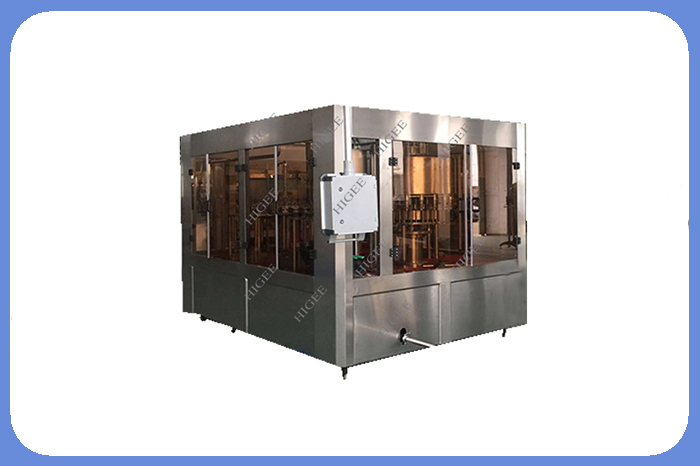

The high-quality stainless machine is made and designed through introduce of technology from Germany KRONES Co., which has stained to the national top. It is mainly used for filling carbonated beverage with the method of holding the bottoms of the bottles. Adopting PLC control, automatic liquid level inspecting and hygienic structure, which is convenient to be operated and maintained.
Feature:
1.High efficiency and low beverage loss: Owing to the special constructions features the machinery can run at high speed with low rate of glass broken. In the event of bottle breakage a burst flushing system can remove any fragments from the bottle platform, filling valve and centering bell assembly, filling valve automatically be closed in very short time avoiding beverage and gas loss.
2.Sanitation: All parts which contact with beverage are made with high quality polished stainless steel. The CIP system offers automatically cleaning and sterilization of the filler.
3.Using PLC control the machine monitors, the filling liquid level automatically. Made up of high quality stainless steel, it is sanitation. Operation and maintenance is convenient.
Specification:
Model |
RCGF16-16-6 |
RCGF18-18-6 |
RCGF24-24-8 |
RCGF32-32-10 |
RCGF40-40-12 |
capacity(BPH) |
4000-5000 |
5000-6000 |
6000-8000 |
8000-10000 |
16000-18000 |
can bottles type |
Bottle Diameter:φ50mm-φ100mm;Height:150mm-310mm |
||||
pressure of washing bottle(mpa) |
0.2-0.25 |
||||
watering consumption(kg/h) |
1200 |
1500 |
1800 |
2400 |
3200 |
compressed air pressure(mpa) |
0.6 -0.8 |
||||
Air consumption(m3/min) |
0.1 |
0.4 |
0.4 |
0.5 |
0.8 |
Total power (kw) |
2.2 |
3 |
4 |
6.2 |
7.5 |
Total weight (kg) |
2500 |
2800 |
3500 |
6000 |
8500 |
Dimension (mm) |
2350x1750x2250 |
2480x1960x2250 |
3010x2180x2400 |
4000x2200x2500 |
|
