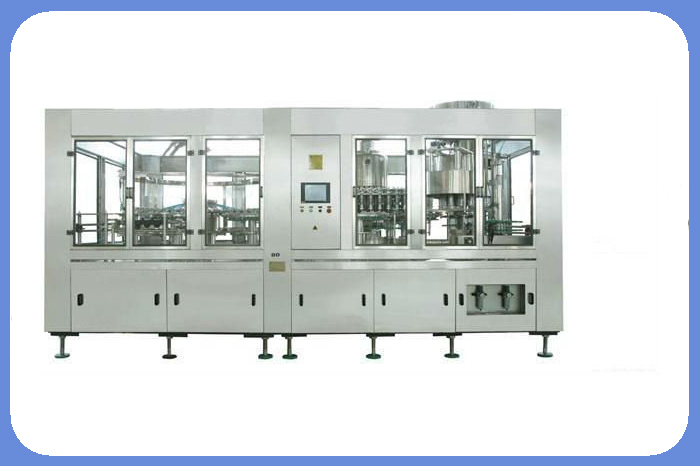

Name: | RCGF32-32-10.Carbonated sparkling water bottling plant with Filling Machine / Beverage Production Line |
Driven Type: | Electric |
Material: | Stainless Steel |
Application: | Pure Water|mineral Water|beverage |
Product Name: | RCGF32-32-10.Carbonated sparkling water bottling plant with Filling Machine / Beverage Production Line |
Description:
Carbonated drink filling equipment adopts bottle neck holding transmission technology to realize fully automatic bottle rinsing, pulp filling ,carbonated filling and cap screwing. It employs single cavity plunger type of fixing filling volume technique. It is equipped with CO2 accuracy pressure control, so that the liquid level is always stable. The application of alarm devices for bottle jam, bottle shortage, bottle damage, cap shortage, over loading etc. in several places ensure the quality of its production. The machine obtains advantages of high reliability, high efficiency, high grade of automation and easy operation etc.
Feature:
1.Multiple Usage: The filler provide a comprehensive range of different bottle sizes (height 150-320mm, Dia. 50-100mm)
2.Easy adjustment: An automatic height adjust device is available which offers you very easy operation only by pressing a button. For filling different size of bottles, relative parts can be easily and quickly changed without tools.
3.Advanced construction features: The filler carousel is mounted on a huge heavy duty combined bearing, which guarantees optimum smooth running of the filling bowl. The centering bell assemblies precisely locate the necks of bottles onto filling valves. The design of suspended and cantilevered bottle lift cylinders and bottle platforms allows easy, unrestricted remove of broken glass following bottle explosion which, with the addition of well protective of piston rods, minimizes the risk of damage of sliding surface of cylinders.
Model |
|
RCGFB16-16-16-6 |
RCGFB18-18-18-6 |
RCGFB24-24-24-8 |
RCGFB32-32-32-10 |
RCGFB40-40-40-12 |
RCGFB50-50-50-15 |
Bottle washing head |
|
16 |
18 |
24 |
32 |
40 |
50 |
Pulp filling head |
|
16 |
18 |
24 |
32 |
40 |
50 |
Juice filling head |
|
16 |
18 |
24 |
32 |
40 |
50 |
Cap screwing head |
|
6 |
6 |
8 |
10 |
12 |
15 |
Rated production capacity |
|
4000BPH |
6000BPH |
8000BPH |
12000BPH |
15000BPH |
20000BPH |
Installed capacity |
|
3.8KW |
4.3KW |
6.5KW |
8.7KW |
9.5KW |
12KW |
Overall size |
|
3050*2000*2400mm |
3170*2070*2400mm |
4070*2350*2400mm |
5100*2600*2400mm |
6250*3050*2400mm |
7500*3900*2400mm |
