Name: | RCGF24-24-8High quality long duration time india fruit juice machines manufacturers With Professional maker |
Driven Type: | Electric |
Material: | Stainless Steel |
Application: | Pure Water|mineral Water|beverage |
Product Name: | RCGF24-24-8High quality long duration time india fruit juice machines manufacturers With Professional maker |

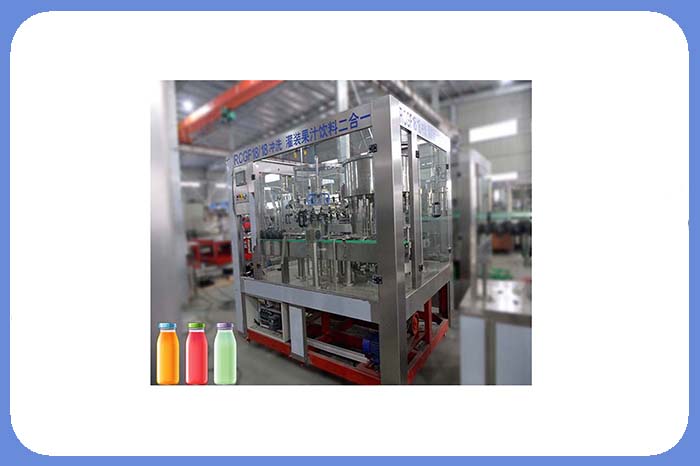

Description
The machine is based on the 13 KW electric motor as the main drive,the
worm gear reducer with motor drags the triangle belt rotation, pick the bottles,wash bottles, as the bottles read then done filling,after that the capping rotation system will done
Feature:
1. The whole machine have compact structure, good apperance, ease operation, high automatism and low labor intensity.
2. By changing the starwheel, screw bottle inlet and arc guide plate can realize to change the bottle shape.
3. All the parts which contact with the material directly is made of food grade stainless steel, no technology dead angle, easy to clean.
4. By adopting high speed filling valve, the liquid level is precise and no waste. That guarantees the demand of filling technology.
5.The capping heads adopt magnetism permanent torque device, which can guarantees the quality of sealing cap, and also does not damage the cap.
Specification:
Model |
Washing heads |
Filling heads |
Capping heads |
Capacity (b/h)500ml |
Power (KW) |
overall dimension(mm)
|
RCGF16-16-6 |
16 |
16 |
6 |
3000-4000 |
2.2 |
2400X1800X2400 |
RCGF18-18-6 |
18 |
18 |
6 |
4000-5000 |
3.1 |
2500X1850X2400 |
RCGF24-24-8 |
24 |
24 |
8 |
7000-8000 |
3.8 |
2900X2150X2400 |
RCGF32-32-12 |
32 |
32 |
12 |
10000-11000 |
5.6 |
3600X2500X2400 |
RCGF36-36-12 |
36 |
36 |
12 |
11000-12000 |
6.5 |
3750X2600X2400 |
