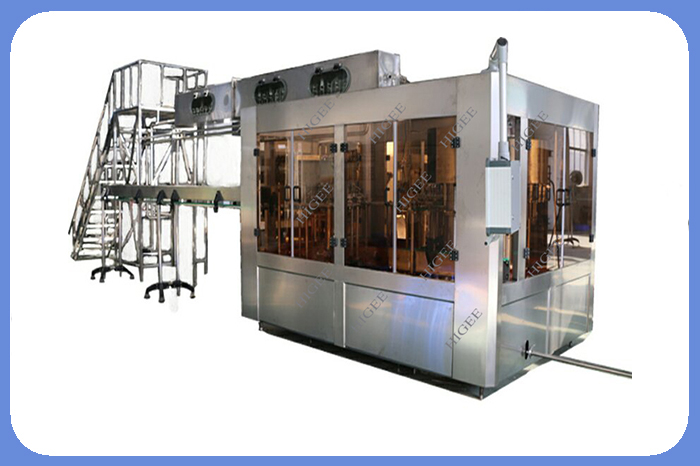

| Name: | PET/HDPE/Glass bottle Juice/tea hot filling&packing machine RCGF24-24-8 3 in 1 Machines |
| Driven Type: | Electric |
| Material: | Stainless Steel |
| Processing: | Bottle Packing Machine |
| Name: | PET/HDPE/Glass bottle Juice/tea hot filling&packing machine RCGF24-24-8 3 in 1 Machines |
Description:
1.The machines is mainly used for the juice filling,with optional capacity from 12,000 to 15,000b/h by PET bottle ,HDPE bottle or glass bottle for 500ml/1000ml. The machine design is shorten the time for the drink material contact with outside, Increased the sanitation condition and throughout and economy benefit.
2.Advanced programmable PLC is equipped to control the main machine. Main electronic components are all from famous international enterprises. All spare parts that may touch with water are made of high-quality stainless steel 304.
Feature:
1. There is a cap-lock cylinder in the joint between the cap-falling guide and poking cap plate. It is realize that no feeding no cap.
2. By adjusting the height of the rotary parts to adapt for different bottle height.
3. The motivation of the screwing capper is derived from the driven system in the framework and passed by gear.
4. The main parts of the screwing capper are processed by the digital-control processing center.
Specification:
Item/model |
RCGF14-12-5 |
RCGF18-18-6 |
RCGF24-24-8 |
RCGF32-32-10 |
Capacity(bph) |
3000-4000 |
5000-7000 |
8000-10000 |
12000-15000 |
Filling heads |
14 |
18 |
24 |
32 |
Flushing heads |
12 |
18 |
24 |
32 |
Capping heads |
5 |
6 |
8 |
10 |
Flushing pressure |
0.25MPa |
0.25MPa |
0.25MPa |
0.25MPa |
Power(KW) |
5.5 |
7.68 |
9.18 |
10.28 |
Voltage |
||||
Outline dimension |
2250*1600*2100 |
2430*1800*2100 |
3050*2060*2100 |
4050*2300*2100 |
Total Weight(kg) |
2200 |
3500 |
4500 |
6800 |
