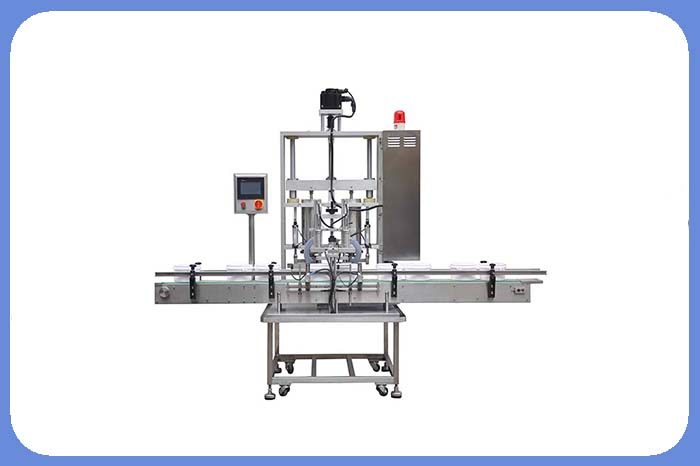

Name  engine oil HG-ZLDG-4 filling machine

Filling speed   30~45bpm.(for 5000ml/bottle water)

filling heads 6

Filling precis  ±0.5

Gas consuption  0.15

Pressure   0.5-0.8

Capacity  500ml~5000ml

Motor    Siemens

PLC  MITSUBISHI

Description:

1. The engine oil filling machine can be used for lubricating machine

2.all types of liquid filling for PET bottles, glass bottles and anomalistic bottles to filling.

3. The engine oil filling machine business is an ideal choice for car.

equipment features:

Feature:

1.Multifunctional liquid filling machine has auto liquid filling system to realize constant level. The bottle orientation system adopts fixed distance, no accumulated tolerence error, to insure reliable bottle filling.

2.The filling system adopts clamp valve and the filling liquid doesn’t touch the valve directly, no leaking, very sanitary and trustable. The machine adopts Japan Mitsubishi PLC, to insure high precision requirement. The micro adjustment is fast and convenient, and you just have to change some parameters. The whole structure is simple and easy maintain, which is suitable to many varieties of abnormity bottles. To change botte types, just need to change filling valve’s height and distance.

3.The contact part is 304 stainless steel.

Specification:
