Application

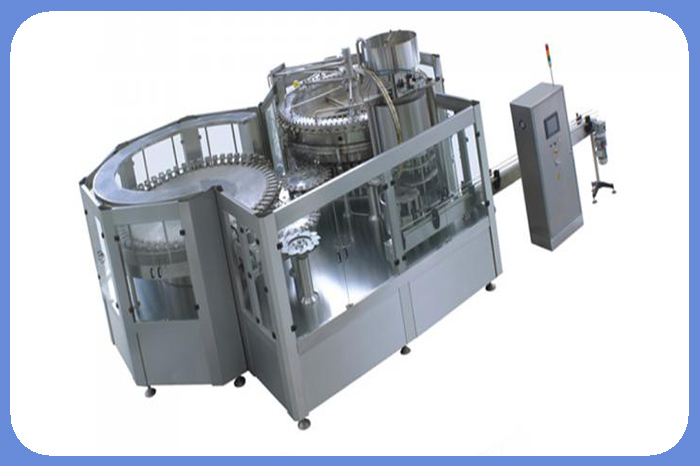

The machine is mainly used in the beverage filling operations. The machine washing, filling and capping three functions together in one body, the whole process is automatic, suitable for PET bottles, plastic bottles filling juices, mineral water, purified water, with temperature controlling device can also be hot filling. Various parts of the types of bottles used to adjust handle rotation can be freely and conveniently.

Description:

 It adopts new micro pressure filling, so filling faster and more stable because the same specifications this machine compared to higher yields, greater efficiency.This machine adopts advanced OMRON programmed controller (PLC) to control the machine run automaticallyadjust the inverter used in the bottle, so that mutual cooperation with the host drive into the bottle to run more stable and reliable. Photodetector operating conditions of each component, so the high degree of automation, easy to operate. On this basis, the filling machine to change section, you can form a low vacuum filling method. Low vacuumfilling (Z type machine), applicable in glass bottles, filling alcohol, soy and other materials, the sealing means canaluminum theft proof cap and plastic cap. Is the ideal beverage manufacturers first device.

Feature :

(1)This carbonated CSD filler machine is a unique design combining the three machines of bottle washing, filling and capping in one to decrease main power, to save space and to diminish the air pollution among the three machines.
   (2) The carbonated beverage plant is applicable for carbonated drink filled in plastic bottles and capped with plastic caps, with optional capacity from 1200BPH to 12000BPH.
(3) The carbonated soft drink filler is easy to change the shape of bottles, which can be done by changing the thumb wheel without adjusting the height of the machine.
(4) The carbonated beverage filling machine plant adopts suspensory transmission gear, which can easily upkeep and be repaired.
(5) This carbonated soft drink filler's case and the parts contacting with the materials are made of stainless steel which ensures the good external look and easy washing.
(6) It uses frequency changer to control the main machine motor. And聽it聽has an output number indicating function which is easy to control the adjustment of the output.
(7) Human-machine interface touch-screen is adopted in the beverage filling machine. The liquid level in the tank can be controlled automatically. The filling and capping will stop automatically when there is not bottle.
(8) The carbonated beverage bottling plant constant temperature circle system , temperature and circumfluence are controlled automatically.

Specification
