| Name: | Automatic Hot Melt Glue Labeling Machine for Rectangular Cans or Bottles |
| Name: | Automatic Rectangle Can or Bottles Labeling Machine |
| Model: | HG-0606R |
| Label station: | 6 |
| Main motor: | 1.5KW |
| Total power: | 8KW 380v 50hz |
| Label type: | OPP |
| Production capacity: | 6000bottles per hour |
| Accuracy of labeling: | ±1mm |
| Labeling Method: | Hot Melt Glue Labeling |

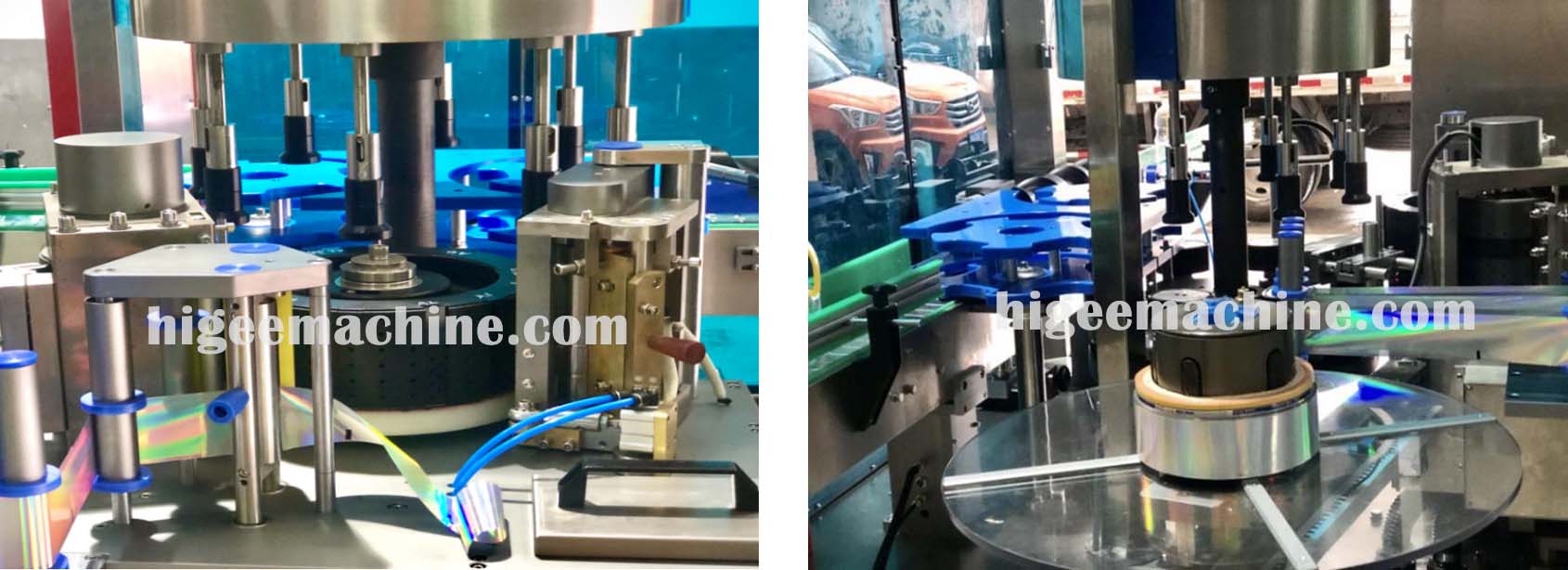

Automatic Hot Melt Glue Labeling Machine for Rectangular Cans or Bottles
This is automatic rotary type hot melt glue labeling machine. This labeling machine is suitable for labeling special shape of rectangular cans or bottles, the material of label are using environmentally material of OPP films. It can be automatically oxidative decomposition and reduce production costs by more than 30 percent.
The Labeling machine is controlled by PLC touch screen, all electric eye are using imported advanced configuration. This labeling machine with high speed, high accuracy, stable performance, easy to operate and look elegant appearance .
It is widely used in food canned plant such as lunchenon meat, meatloaf, corned beef, corned mutton, tuna, sardines, or rectangle bottles for edible oil, engine oil, detergent bottle etc.
Technical Parameters:
Name |
Automatic Hot Melt Glue Labeling Machine For Rectangular cans |
Model |
HG-0606R |
Label station |
6 |
Main motor |
1.5KW |
Total power |
8KW 380v 50hz |
Label type |
OPP |
Suitable for bottle |
D 80mm H: 240mm |
Suitable for label |
H 80mm L: 276mm |
The maximum outer diameter of label |
600mm |
Paper core Hot melt |
152 mm |
Gluing way |
glue at both ends of each label with hot melt |
Use label method |
Label roll |
Production capacity |
6000bottles per hour |
Accuracy of labeling |
±1mm |
Height of conveyor belt |
1000±30mm (can be customized) |
Gluing temperature: |
120-160degree |
Material of label: |
opp label 、paper-plastic composite film label、paper label |
Machine weight |
About 2000kg |
Machine size |
About L 3215mm X W 2031mm X H 2000mm |
Higee Machinery is specializing in providing different kind of filling, capping, labeling and packaging machine in beverage, food, pharmaceutical and chemical, cosmetics and toiletry industries. Our engineers can give customized design and solution as per client's specific requirements.
We are willing to cooperate and develop long term business relationship with all clients worldwide for one stop solution. We always provide quality machines and good service at reasonable price for customers to get win-win cooperation.
