| Name: | Automatic Engine Oil Flowmeter Filling Machine |
| Automation: | Automatic filling machine for liquid |
| Filling way: | Flowmeter filling machine |
| Filling volume: | 1-5L |
| Capacity: | 200～1000BPH |
| Total power: | 1.5Kw |
| Total Weight: | 400kg |
| Dimensions: | 2000×800×1500mm (LWH) |

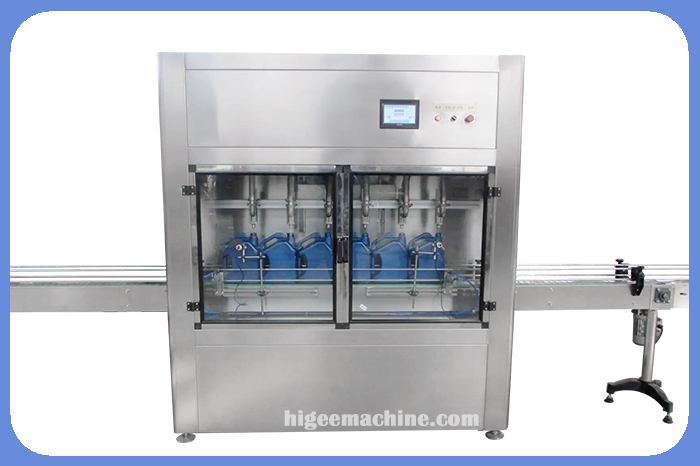

Automatic 1-5kg Liquid Flowmeter Filling Machine
Product
This machine is used for 1L-5L Jerrycan and bottles.
Description
ØThe main components use well-known brands. Variable frequency speed regulation, the filling speed is continuously adjustable.
ØSpecial anti-drip filling head, better anti-drip effect.

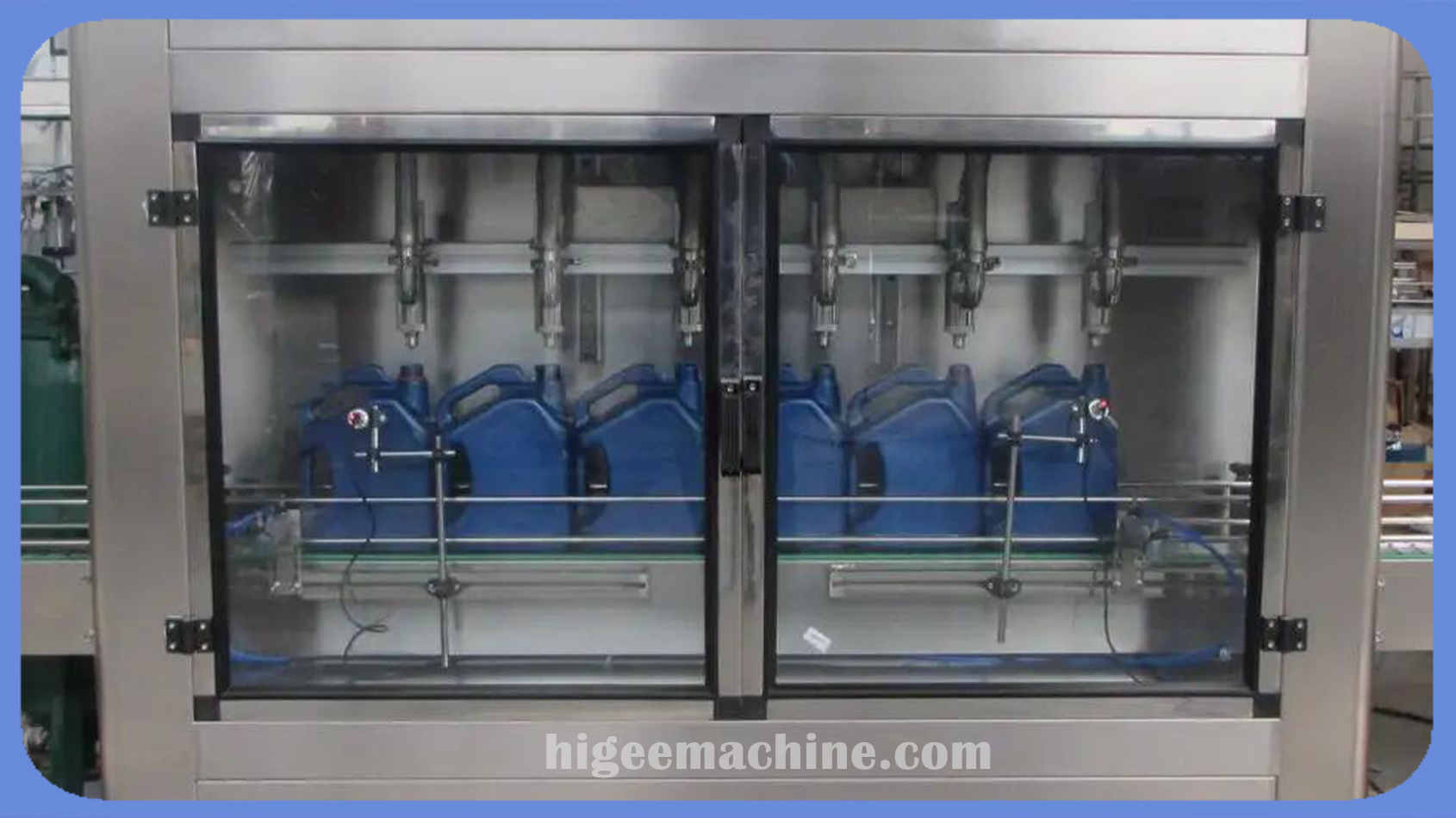

ØFill the filling head to 2/3 of the bottle to start filling, and fill while lifting to prevent the liquid from foaming or splashing due to large impact. Touch screen PLC control, no bottle without filling, no capping and no bottle automatic shutdown.
ØIntelligent control of the filling volume: the touch screen directly inputs the filling volume, and the filling volume can be automatically calibrated. Switching between different specifications, it is extremely convenient to adjust the loading volume, and there is no requirement for the level of the operator. It avoids the trouble of traditional adjustment and trial.
Technical parameter
Parameters |
|
Capacity |
200～1000BPH (based on different filling volume) |
Filling head |
4 |
Filling way |
Flowmeter |
Air pressure |
0.6-0.8Mpa |
Power supply |
Single phase, 220V/50Hz, 1.5kw |
Machine weight |
400kg |
Overall size (estimated) |
2000×800×1500mm |
