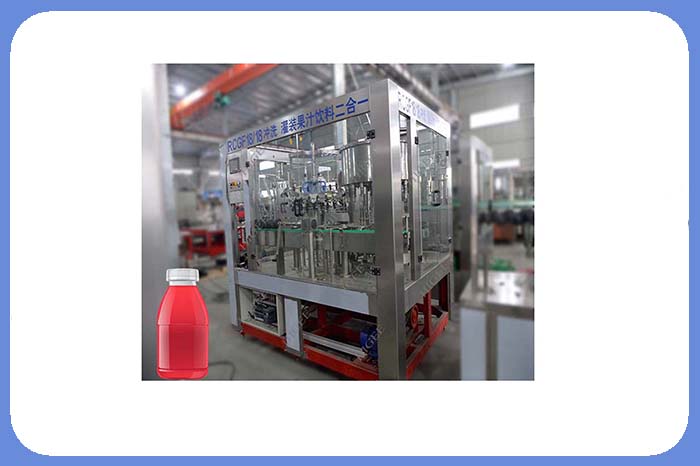

Name: | RCGF50-50-15.Bottled Juice Beverage Filling Making Machine In China for Complete Fruit Juice Processing Line / Juice |
Driven Type: | Electric |
Material: | Stainless Steel |
Application: | Pure Water|mineral Water|beverage |
Product Name: | RCGF50-50-15.Bottled Juice Beverage Filling Making Machine In China for Complete Fruit Juice Processing Line / Juice |
Description:
The series equipment is used for filling fruit juice and tea-beverage( hot-filling).
1. design of rotary working-modality, confirm the machine to work more fast and stably.
2. design of clipping bottle-mouth, confirm that the machine can be fit for the bottle with 250ml to 3000ml, only need replace a little spares.
3. PLC is adopted to control the machine running automatically, need less people to control the machine.
4. refluence system confirm the effect of the sterilization.
Feature:
1.Filling valve adopts high precision mechanical filling valve ,with the character
of no bottle no vacuum pumping.
2,Open Gear combinated gear box transmission ,with on-off device ,Frequency conversion velocity
modulation devices extend the speed modulating scope .
3,This machine has self oil lubrication device ,so that the lubrication points could
be lubricated regularly in time .
the machine of high efficiency ,low noise and long life .
4,Centering guide is of double guide bar type ,with the function of pre-covering .
5,Wine jar and capping head are driven by manual ,also can be driven by electricity to fit different
sizes of bottles .
6,The material height in the tank is controlled by electric probe to assure precise liquid level .
Specification:
model |
RCGF |
RCGF |
RCGF |
RCGF |
RCGF |
|
|
18-18-6 |
24-24-8 |
32-32-10 |
40-40-12 |
50-50-15 |
|
production capacity(500ml)(b/h) |
4000-6000 |
6000-10000 |
10000-15000 |
15000-20000 |
20000-24000 |
|
|
|
|
|
|
|
|
filling precision |
±2mm(liquid level) |
|||||
polyester bottle standerd(mm) |
bottle diameter: φ50-φ100;height:150-310 |
|||||
|
|
|||||
water pressure of washing bottle(Mpa) |
0.2-0.25(Mpa) |
|||||
|
|
|||||
gas consumption(m3/min) |
0.1 |
0.4 |
0.5 |
0.5 |
0.6 |
|
power(kw) |
4.4 |
5.2 |
6.2 |
7.8 |
10 |
|
weight(kg) |
2800 |
4500 |
6000 |
7000 |
9500 |
|
dimensions(L*W*H)(mm) |
2360*1830*2250 |
2900*2200*2250 |
3880*2200*2250 |
3700*3000*2350 |
4500*3500*2400 |
