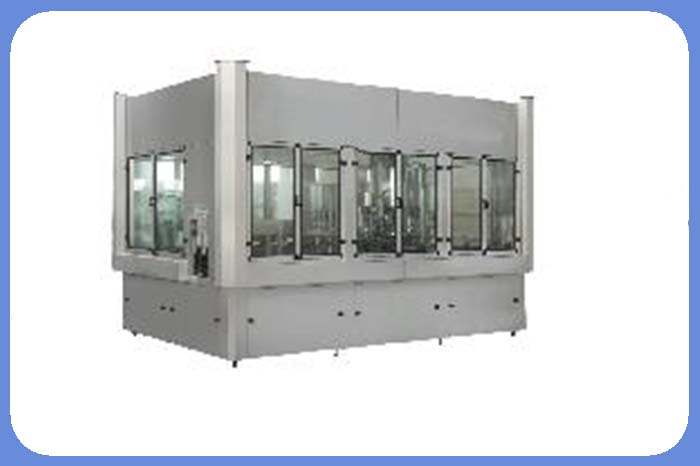

Name: | RCGF40-40-12Automatic Bottled Juice Production Line / Fruit Juice Processing Machine |
Driven Type: | Electric |
Material: | Stainless Steel |
Application: | Pure Water|mineral Water|beverage |
Product Name: | RCGF40-40-12Automatic Bottled Juice Production Line / Fruit Juice Processing Machine |
Description:
1Thefillingmachineis used in hot filling and sealing of green tea, black tea, wulong tea, and fruit juice drink. The machine integrates washing, filling, capping together. The design is scientific and reasonable. Its operation and maintenance is convenient. The automatic is high. It is good equipment for choosing hot drink filling machine.
2.Thefillmachineis adopt block bottle-neck hanging work state design, and be adopt filling valve rise-drop design; It’s be satisfy for 95 °C hereinafter hot filling technology demand; It’s adopt person-machine interface touch-screen,PLC, transducer etc advanced control technology. It’s osculant the drink material parts are adopt the sus304 stainless steel.the machine main motor, reducer,mostly axletree,pressurize parts electricity ware element,gas drive element etc are adopt famous international manufacturer products.
Feature:
1.Stainless steel construction, fine which gives excellent appearance and can be easily disinfected.
2Tempering glass window, clear and steadily
3.Excellent start wheel design to making it easily when needs to change machine height when bottles sizes are changed.
4.Machine Base with process of three layers Antirust Pain ensure the forever antirust
5.All seal where liquid may Leakage & base neck come with rubber, water proof
6.Manual lubrication system
Specification:
Model |
RCGF16-16-6 |
RCGF18-18-6 |
RCGF24-24-8 |
RCGF32-32-10 |
RCGF40-40-12 |
capacity(BPH) |
4000-5000 |
5000-6000 |
6000-8000 |
8000-10000 |
16000-18000 |
watering consumption(kg/h) |
1200 |
1500 |
1800 |
2400 |
3200 |
Total power (kw) |
2.2 |
3 |
4 |
6.2 |
7.5 |
Total weight (kg) |
2500 |
2800 |
3500 |
6000 |
8500 |
Dimension (mm) |
2350x1750x2250 |
2480x1960x2250 |
3010x2180x2400 |
4000x2200x2500 |
