Description:

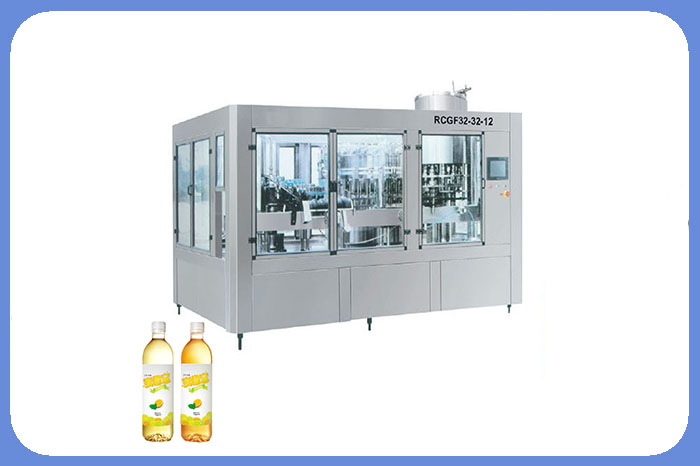

DCGF series 3 in 1 Juice filling machine is introduced advanced foreign technology such as washing, filling, capping technology. It is used in filling hot fruit juice, tea ,milk and other drinks. After cleaning the 3-in-1 Juice Filling Machine,it is also used in filling water.

Feature:

1. Using the wind sent access, with clamp hanging the bottle neck which can keep the bottle shape high-speed.
2.. Washing bottle mouth with special designed washing manipulator, clip in the bottle neck, stable avoid secondary pollution.
3.. Filling uses lifting valve, adopts micro pressure filling principle to ensure correct filling.
4.. Capping adopts French advanced technology, cap sorter install in a lower position, send cap in level position.
5.. Host adopts advanced PLC automatic control technology, the key electrical components from famous company such as Japan Mitsubishi, France Schneider, Omron.

Specification:

Model :RCGF18-18-6

Capacity: (B/H)0-6000(500ml)

Washing heads:18

Filling heads:18

Capping heads:6

Filling precision:±2%

Success rate of capping:±99%

Power（kw）:5

Weight（kg）:4000

Dimension（L*W*H):2400*2000*2200mm
