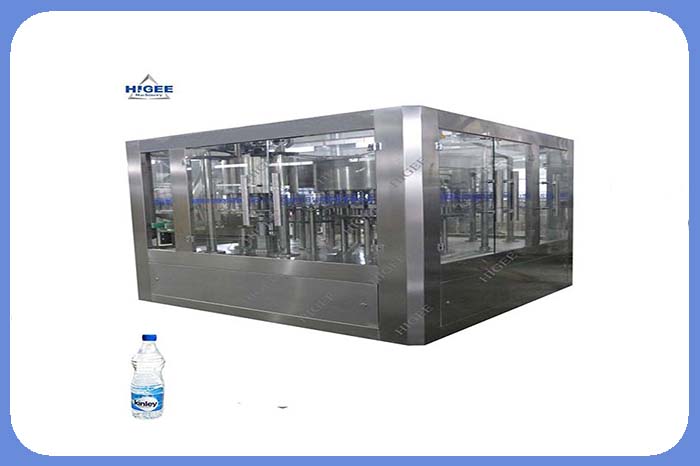

| Name: | Rinsing, Filling, Capping 3in1 Unit Machine ,Water Bottle Filling Machine for Water Packing Plant12000bph |
| Driven Type: | Electric |
| Material: | Stainless Steel |
| Capacity: | 15000 bottles / hour (500ml / bottle) |
| Processing: | Bottle Packing Machine |
| Name: | Rinsing, Filling, Capping 3in1 Unit Machine ,Water Bottle Filling Machine for Water Packing Plant12000bph |
Description
1.Rinsing system: This section consists of red bottle clip turntable, sub-pan, sink.
2.Filling system: This part is composed of liquid cylinder, filling valve, control ring and lifting cylinder.
3.Covering system: This part is composed of capping machine, cover capper and cover guide rail.
4.Transmission system: This part adopts gear centralized transmission mode, composed of main motor and gear pair.
Technical Parameters
Model |
DCGF32-32-10 |
Number of stations |
Rinsing 32, filling 32, capping 10 |
Rated production capacity |
12000BPH(375ml) |
Filling method |
Isobaric filling |
Filling temperature |
≤4℃ |
Adapt to bottle type |
Bottle diameter: φ50- 100mm; bottle height: 150-310mm |
Air pressure |
0.4-0.6 MPa |
Gas consumption |
8-10M3/h |
Bottle water pressure |
0.2-0.25 MPa |
Bottle water consumption |
2 tons / hour |
Rated voltage |
380V |
main motor power |
5.5Kw |
Host dimensions |
3100 × 2350 × 2450 (L × W × H) |
Equipment weight |
4500Kg |
Feature
Filling machine
All rotating discs are made of stainless steel SUS304
Filling method for gravity filling
Filling valve made of SUS304L
Filling machine power transmission system through the
Competitive Advantage
1. Best price & best quality
2. Customized according to customer needs
3. Delievery in time
4. Life-time good service
