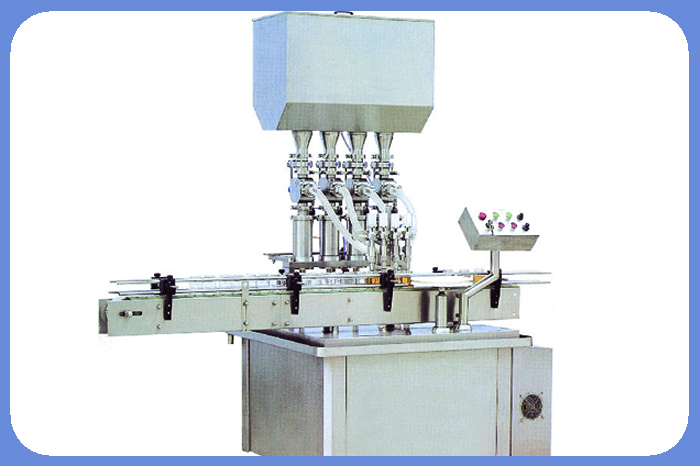

Automatic filling machine YMGT

Name:Automatic filling machine YMGT
Capacity:40-60pcs/min 60-100pcs/min 100-200pcs/min
Air supply:0.6-0.8mpa
Power supply:220V/380V 50/60Hz
Power:1.0kg
Net weight:500kg
Dimension:2400×800×1800mm

Product Description

    •








         The Automatic Filling Machine (high viscosity, low fluidity) has an improved common

         filler, mainly for high  viscosity, low fluidity products. Different speed grades are

         available for customized requirements. it can be used as a standalone or connected to

         other machines as an integral production line.



         Options

    •   ● Hopper level control
    •   ● Polycarbonate safety cover
    •   ● Teflon/Viton/Ceramic contact parts
    •   ● Special electrical requirements
    •   ● Sanitary, hazardous, flammable and corrosive environment construction
    •

          Key Features

        ● High viscosity (low fluidity) products such as cream, sauce, paste, ointment, glue,

             otion,shampoo and oil, etc.

        ● PLC controls, speed adjustable, no container no filling.

        ● Piston pump filling along with auto shut on/off filling nozzles, no leaking and drawing.

        ● Filling nozzles go upwards slowly from the bottom level of bottle towards neck during

              filling to minimize foaming and spatter.

        ● Filling dose of pumps can be adjusted together, and fine adjustment alone.

        ● Easy to clean, and no tools are required.



           Applicable Industries

        ● Food

        ● Pharmaceutical

        ● Cosmetic

        ● Chemical
