The structure of the shrink sleeve labeler

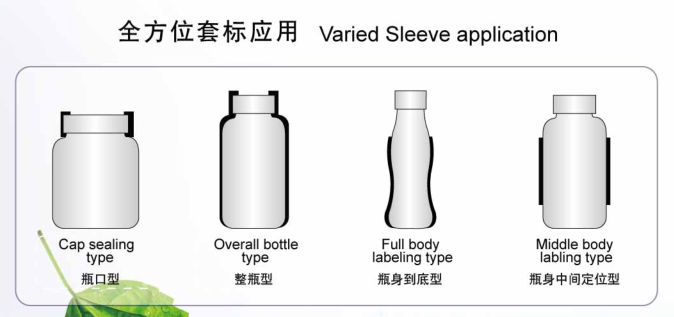

Set of shrink sleeve label principle:
shrink sleeve labeler
When the conveyor belt has a bottle through the detection of
electric eye bottle, the servo-controlled drive group will automatically send
the next label, while brushing the next wheel group will brush the next label,
this label will be set into the bottle. If the detection position is not
correct, the label can not be successfully set into the bottle.
shrink sleeve labeler
Institutional functions:
shrink sleeve labeling machine
Cutter group:
The eccentric interlocking mechanism is driven by the
stepping motor and has no rotation under the action of the non-bottle, which
increases the service life and safety. At the same time, its cutter is easy to
replace with the ordinary cutting blade and economical.
Machine group:
The whole machine is made of stainless steel body, used to
support the host and fixed conveyor belt.
Shrinkage furnace:
Use electric heat or steam heat will shrink into the bottle
label evenly attached to the bottle.
shrink sleeve labeling machine
Drive group:
Double-drive feed mechanism, which is an indispensable part
of the fixed center column, whether the bottle larger or smaller, as long as
the easy rotation of the hand wheel can change the size required, the
transmission function by the gear group.
Sub-bottle screw:
Will do sets of standard bottles to be separated, into the
bottle with the group.
With bottle group:
Using both sides of the synchronous drive, height and folder
positioning only one hand wheel adjustment, the purpose of the bottle does not
shake and control the set of tag height.
Three-color warning light:
When the normal operation of the green warning light, yellow
flash when ready, the host is not normal when the red light.
Center column:
The label membrane material into the set, the membrane
material can be transported and cut.
shrink sleeve labeler
Eyeglasses set:
The use of optical fiber transmission signal, the control
system to provide fixed size delivery, electric eye position can be adjusted.
Brush group:
Use the strap or rubber band to insert the bottle label
brush into position.
Brush group:
Using synchronous adjustment mechanism, the brush under the
two sets of transmission wheel to the center column under the wheel to adjust
to a slight contact, to be passed through the label at a higher speed will be
set into the bottle label.
shrink sleeve label manufacturers
Double-rack group:
Saving refueling time, the material from a group of conveyor
roller speed motor pressure feed.
Conveyor belt:
Adjust the conveyor speed using the inverter to match the
speed of the production capacity, the machine will be synchronized to control
the sub-bottle screw group, with the bottle group, the conveyor belt made of a
single knob speed.
bottle electric eye:
Monitor the bottle to the appropriate position, the output
signal to host automatically into the label.
labeling manufacturers
Feed group:
Is composed of a feeding box for controlling the feeding
tension of the label and a feeding motor for conveying the label film material.
Preheating shrinkage:
For the label into the shrink furnace before the
positioning, to prevent the label moves.
