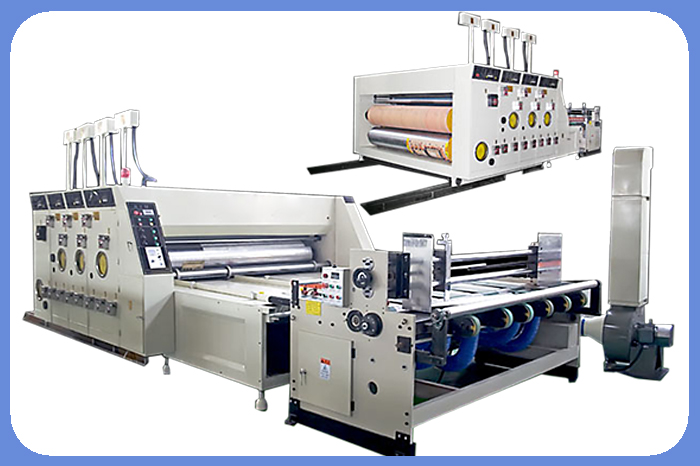

| Name: | ZYM Automatic Feeding Printing and Die-cutting Machine |
Technical Specification
Model |
ZSYC 1200x2200 |
ZSYC 1400x2600 |
ZSYC 1400x2800 |
ZSYC 1600x2800 |
ZSYC 1800x3200 |
Max. feeding size (mm) |
1200x2000 |
1400x2450 |
1400x2650 |
1600x2650 |
1800x3000 |
Min. feeding size (mm) |
350x350 |
350x350 |
350x350 |
450x450 |
500x500 |
Max. printing size (mm) |
1150x1800 |
1350x2200 |
1350x2400 |
1550x2400 |
1750x2800 |
Max. slotting size (mm) |
7x300 |
7x350 |
7x350 |
7x400 |
7x450 |
Max. slotting clearance (mm) |
100 |
110 |
110 |
120 |
130 |
Slotting blade thickness (mm) |
7 |
7 |
7 |
7 |
7 |
Standard printing plate thickness (mm) |
7 |
7 |
7 |
7 |
7 |
Max. machine speed (sheets/min) |
70 |
65 |
65 |
60 |
50 |
Automatic feeding printing and slotting machine is designed to solve the question that the previous chain cardboard-feeding printing and slotting machine can’t process continuous mass production, the continuous cardboard-feeding can ensure the cardboard is going in the right way, increase the efficiency, greatly decrease labor intensity of workers and reduce the rate of defective products.
