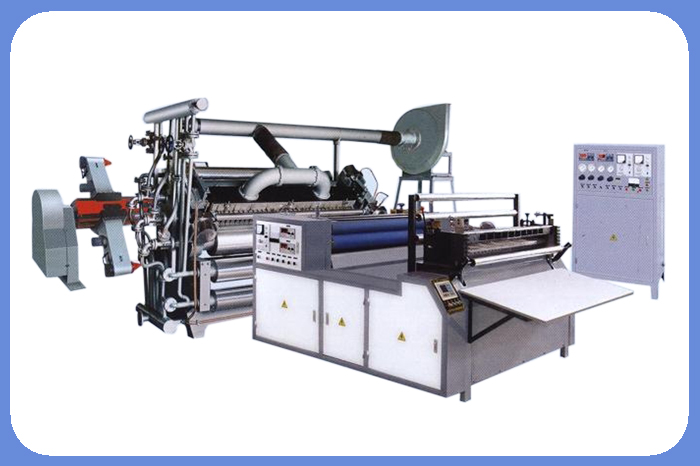

Name: | Single Face Corrugated Production Line (Absorption Type) |
This line contains of shaftless roll stand, single face corrugate forming machine and computer slitting machine. Kraft paper in roll is the raw material, through the procedure of corrugate forming, glue spreading, conglutinating and drying, then automatic slitting into the required dimension of corrugated cardboard.
This line uses vacuum absorption, with small amount of glue for gluing, fast drying. It speeds up the production. With high automatic extent, low electric consumption, high efficiency, easy maintenance, safety and reliability, this line becomes an ideal machine for small and medium size packaging and color corrugated box production.
Paper Width (mm) |
Mechanical Speed (m/min) |
Heating Method |
Corrugated Type |
Adhesive |
Power Source / Speed Regulating Motor |
1320 |
0-80 |
Electric heating (quartz tube), LPG, thermal oil, steam |
UV/A,B,C,D,E or made to order |
Corn or starch |
3phase/380V/50Hz, 4kW |
1450 |
|||||
1650 |
|||||
1800 |
