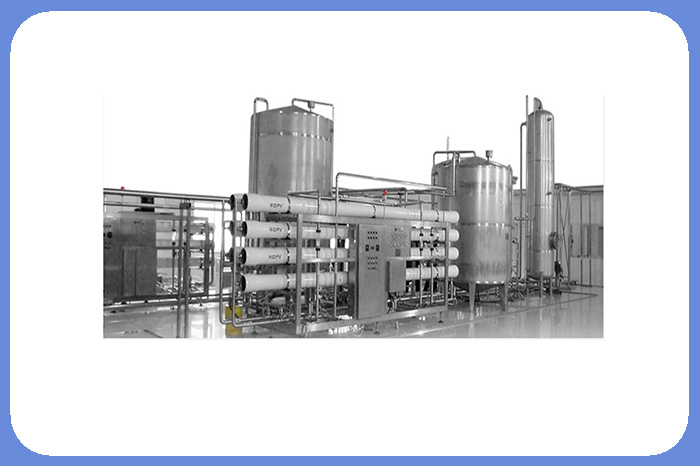

Automatic 2T water making machine Reverse Osmosis water pretreatment plant line

Description:

Water purified line is used to purified raw water to mineral water or pure water.

The raw water is from underground water, city water, mountain water or river

Working Process:

Raw water system→Quartz sand filter→Active carbon filter→Precision filter→Reverse Osmosis→

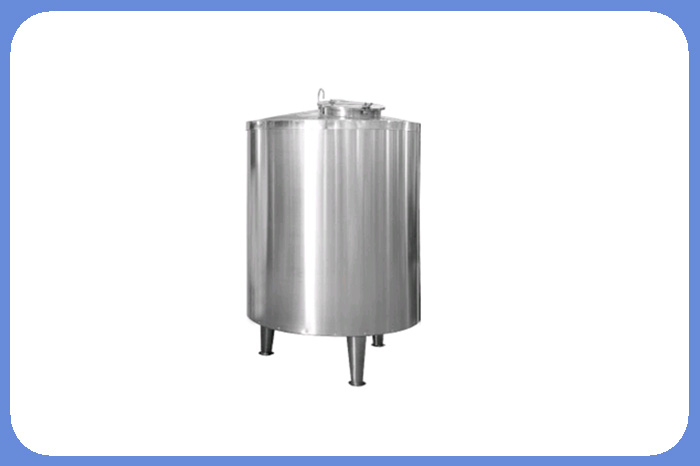

Ozone generator→Ozone mixing tower→Water storage tank

Reverse osmosis is a process of separation of materials using polymer membrane, can be removed from the water more than 90% of dissolved salts and 99% of the class colloid, microorganisms, organic matter, with reverse osmosis desalination than the general distillation or ion exchange desalination With higher efficiency and economy.

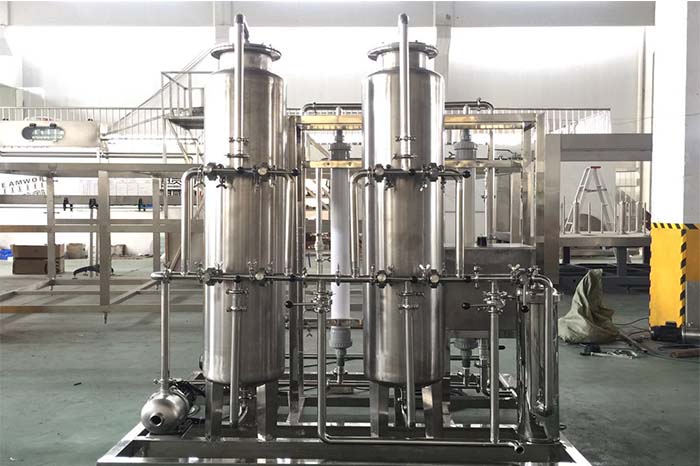

Quartz Sand filter

The quartz sanf filter (multi-media filter) is widely used in drinking water treatment to remove different types of particles, such as suspended solids (turbidity), colloidal compounds and etc, ensuring the filtered water's TDS is less than 5. This process will reduce the load on the back-end fine filters.

Active Carbon filter

The active-carbon filter is the key device, commonly used for removal of organic substance and heavy metal element, suspended solids, residual chlorine and etc. It can effectively reduce the level of COD and improve the taste of water. The system is a pressure filter. In the filter, the quartz and Coconut shell active carbon bed are employed. The activated carbon is equipped with vent valving at the highest point and a drain connection at the lowest point. The internal systems and components for each tank is constructed of frp material.

Reverse Osmosis System( RO)

Reverse osmosis is a process of separation of materials using polymer membrane, can be removed from the water more than 90% of dissolved salts and 99% of the class colloid, microorganisms, organic matter, with reverse osmosis desalination than the general distillation or ion exchange desalination With higher efficiency and economy. Reverse osmosis water treatment device is widely used in pure water, medicine water, alcohol modulation water, industrial ultra-pure water, power plant high pressure boiler supply water, brackish water desalination and industrial wastewater treatment and other fields. The reverse osmosis unit uses the US membrane module and the pressure housing. Pressure shell material for high pressure glass or high quality stainless steel. Including high and low voltage protection device, flow agent, conductivity meter, pressure gauge and other detection devices, is a technologically advanced, easy to operate, cost-effective, so that the depth of water purification equipment, drinking pure water plant is the key equipment.

Membrane element: 2roots

Membrane brand: Dow or Hyde(Can be customized according to customer requirements)
