pure water or mineral water 8-8-3 monoblock rinsing, filling and capping machine line with 1000BPH for 750ml bottles

Name:pure water or mineral water 8-8-3 monoblock rinsing, filling and capping machine line with 1000BPH for 750ml bottles
Washing head:8
Filling head:8
Capping head:3
Production capacity:1000BPH 1L
Air source pressure:0.5-0.6MPa
Rinsing water pressure:0.15-0.2 MPa
Bottle height:150-340MM
Bottle diameter:Φ50-Φ110MM
Filling way:Gravity Filling
Power:3ph, 380V/50Hz, 4KW
Overall size:210018002400(LWH) mm
Weight;2000Kg

Product Description

 3 in 1 rinsing, filling and capping machine with accessories

Working process

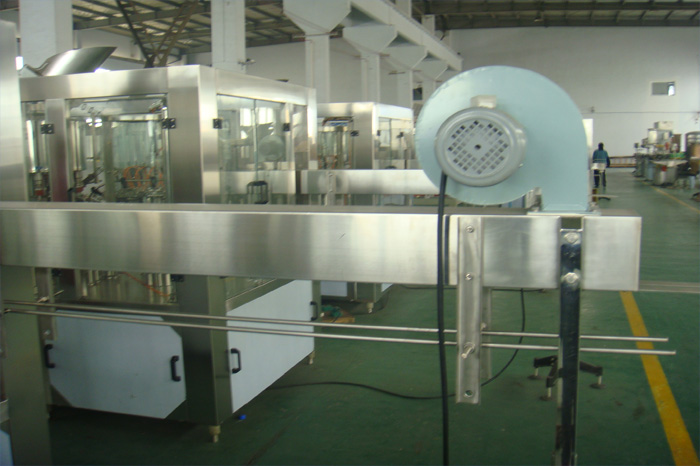

1. Air conveyor



Bottle volume:200-3000ml

Air compressor pressure:0.6Mpa

Motor power:0.37kw/unit, each motor can transport 2m, the motor quantity should be determined according to the production line.

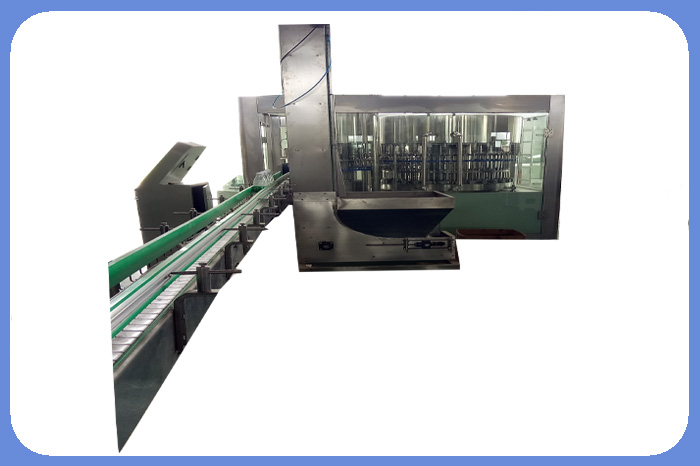

2.8-8-3 monoblock filling machine with cap loader


automatic 8 heads washing  automatic 8 heads filling-automatic cap unscrambling- caps feeder putting the cap on bottle  automatic 3 caps capping  collecting

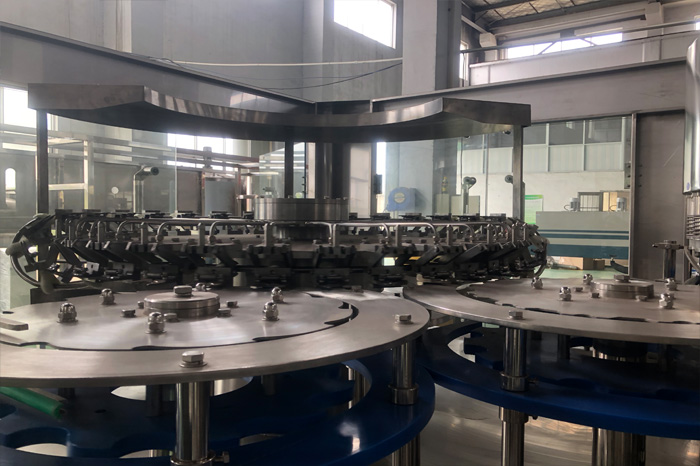

  Washing machine part

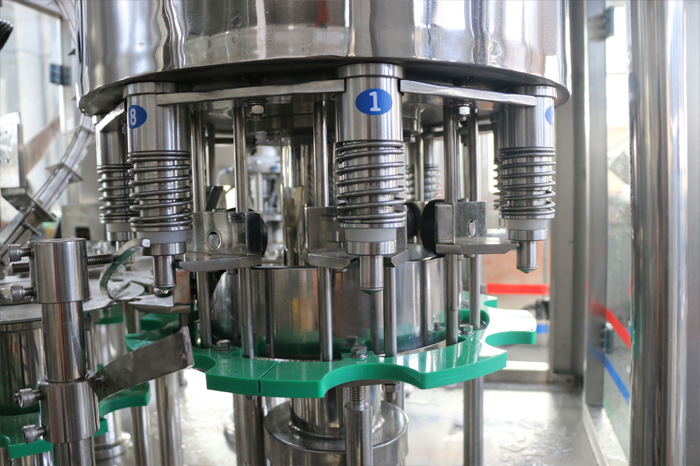

                                                                                   filling machine part

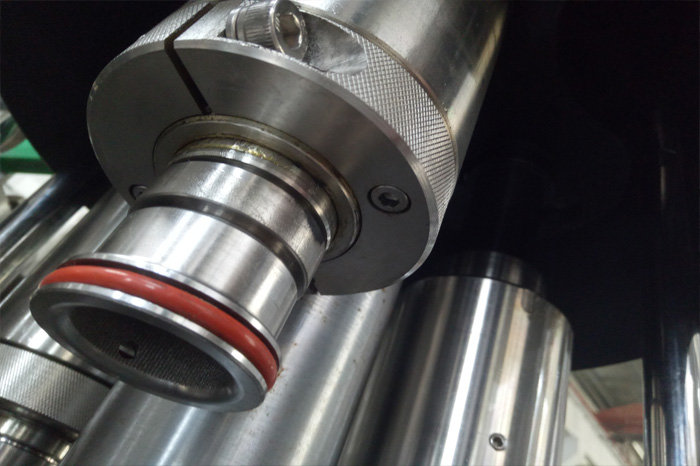

                                                                                 capping machine part
