BCGF40-40-10 filling machine bottle filling and capping machine

Name:BCGF40-40-10 filling machine bottle filling and capping machine
Driven Type:Electric
Material:Stainless Steel
Processing:Bottle Packing Machine
Name:BCGF40-40-10 filling machine

Product Description

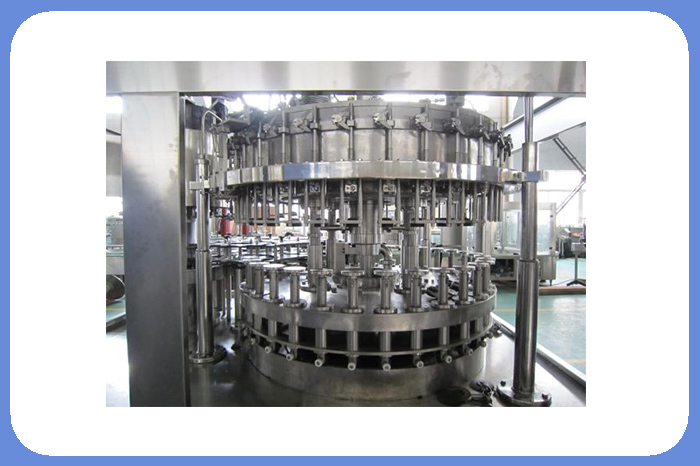

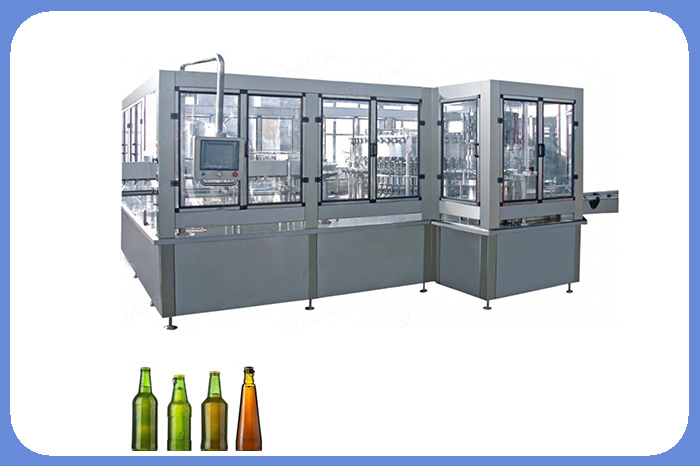

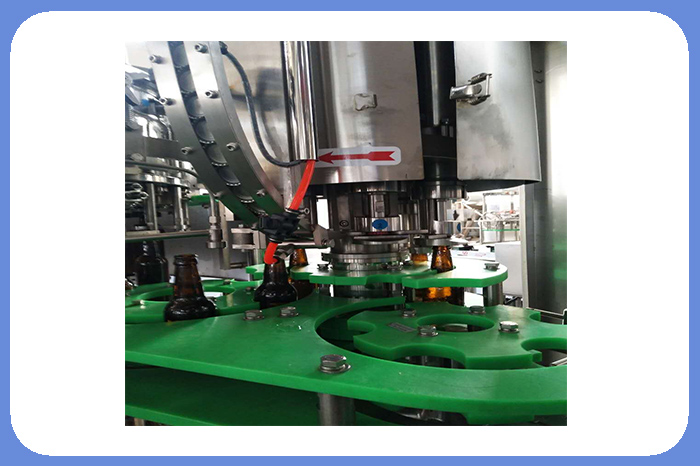

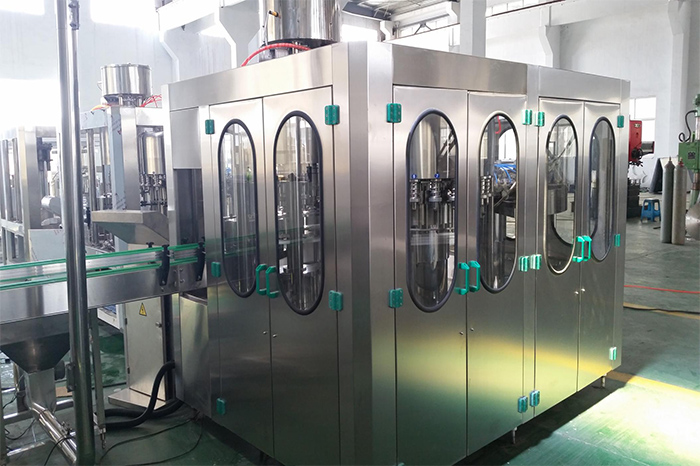

BCGF40-40-10 beer glass bottle rinsing filling and capping machine


1.This type machine is mainly used in washing filling and capping glass beer, white spirit, red wine, vodka, juice, tea, soy, etc. it is suitable for glass bottle.

2The machine contains washing, fillig and capping three functions together in one, it can be equipped with wooden cap, iron cap, plastic cap or aluminum cap.

3The machine adopt feeding screw chain, suit for glass bottle running, and we can do filling valve and sealing part based on customers' products.

It runs automatic by advanced PLC cntroller with reliable HMI touch screen.

4.The conveyor runs by frequency changer, it synchronous with the host inverter makes bottle feeding more stable and reliable.

Reliable photoelectric detection, high-efficiency fully automatic production, simple operation.



1.BCGF40/40/10 type beer bottle washing filling capping 3-1 machine is specially designed for small and medium breweries to fill beer.Made by excellent SUS304, It is a washing filling capping 3 in 1 machine adopted the bottle filling and capping technique of Germany technology. It is widely being used in the Medium and small breweries.

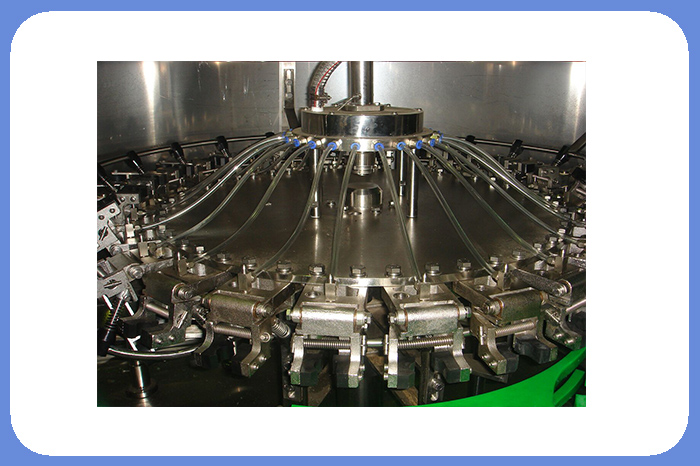

2.t adopts isobaric filling principle and filling valve adopts high precision mechanical valve. It has advantages of fast filling speed, high precision in liquid level.

3. Adopt Siemens automatic controlling system, realizing trinity of the machines, and control the washing, filling and capping process and realize that it only starts to filling when there is a bottle, otherwise it will stop filling and no broken bottles.

 4.The filling process is clean and pure due to its twice pre-evacuation and CO2 injection of bottles, and more stable because of isobaric filling operation

5.Using vacuum pump and CO2 counter pressure to ensure no air and bacteria in the bottle and guarantee the filling stability and beer quality lift time.

6.Using the device structure of filling valve pre-cover device plus supporting bottle bottom device, it can guarantee the maximum stability of bottles when they passing in and out of the filling machine.

7.Filling cylinder braces use worm-gear box going up and down to satisfy bottles of different height. Float switches in the filling cylinder ensure a smooth liquid inlet. Therefore, this machine is the best ideal choice for beer or beverage factories.
