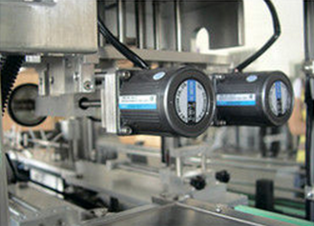

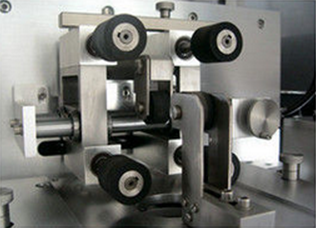

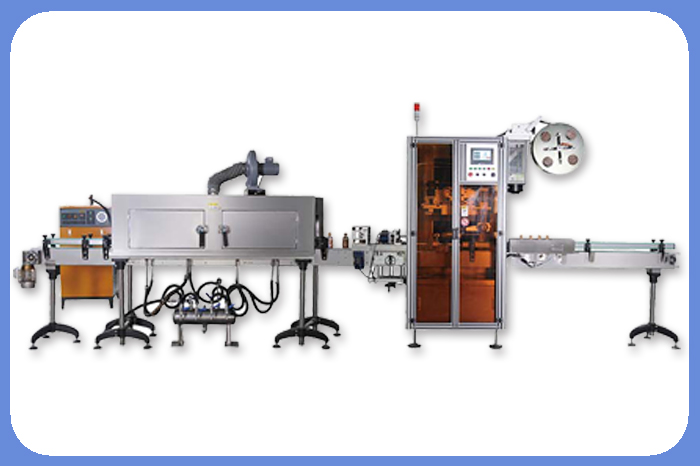

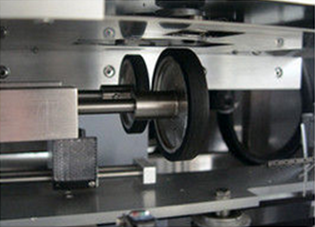

Shrink Sleeve Labeling Machine HTB-100P

Name:Shrink Sleeve Labeling Machine HTB-100P
Place of Origin:Shanghai China
Brand Name:Higee
Certification:ISO9001
Model Number:STB-100P
Input Power:2.0KW
Input Voltage:3Φ380V/220VAC
Speed:100 Bs/min
Size Of Host Machine:2000(L) X 900(W) X 2000(H)
Applicable Diameter Of Bottle Body:Φ28mm-Φ125mm
Applicable Length Of Label:30mm-250mm

Product Description



Shrink Sleeve Labeling Machine HTB-100P

Shrink Sleeve Labeling Machine HTB-100P

Shrink Sleeve Labeling Machine HTB-100P

   Feature:

  ● Can be operated independently or as part of your existing production line.
  ● Facilitates fast and efficient feed changes, thereby saving time.
  ● Adjustable feeding sensor, precision lock up sleeve.
  ● Single orientation mandrel, allowing steady feeding and smooth inserting of labels.
  ● Synchronous feeding screw design, preventing bottle shake during conveying.
  ● Original adjustable knife plate ensure smooth cutting and easy blade change.
  ● No tools required for specification change, fast, convenient, easy.
  ● Advance operating system, colorful touch screen is more human being.
  ● High-normal electric, the feeding cutter co-ordinates flawlessly thereby allow smooth feeding.



 Input Power  2.0KW
 Input Voltage  3Φ380V/220VAC
 Speed  100 bs/min
 Size of host machine”  2000(L) X 900(W) X 2000(H)
 Applicable Diameter of Bottle Body  Φ28mm-Φ125mm
 Applicable Length of Label  30mm-250mm
 Applicable Thickness of label  0.03mm-0.13mm
 Applicable Internal Diameter of Paper Tube  5”-10”(Free adjustment)
