Automatic Sleeve Type Packing Machine XBL6030AH+XBS6040E

Name:Automatic Sleeve Type Packing Machine XBL6030AH+XBS6040E
Model:XBL-6030AH
Packing speed:8-18pcs/minute
Packing size:L+W+H≤700mm
gas:6kg/cm3
Max. current:10A
Sealing knife/heating tunnel size:700mm
Net weight:420kg
Power consumption:2kw
Power:220/380V、3ф、50-60Hz
Machine size:L1360×W2120×H1900mm

Product Description



    •

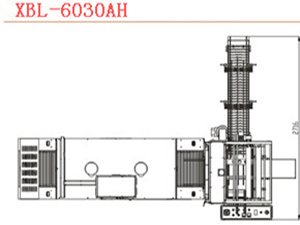

          Specification

        ●  ModelXBL-6030AH

        ●  Packing speed818pcs/minute

        ●  Packing sizeL+W+H≤700mm

        ●  gas6kg/cm3

        ●  Max. current10A

        ●  Sealing knife/heating tunnel size700mm

        ●  Net weight420kg

        ●  Power consumption2kw

        ●  Power220/380V50-60Hz

        ●  Machine sizeL1360×W2120×H1900mm

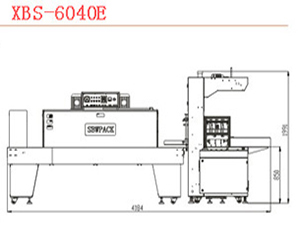

          Shrinking Machine specification

    •   ● ModelXBS-6040E
    •   ● Heating tunnel sizeL1800×W600×H400mm
    •   ● Packing sizeL1500×W550×H330mm
    •   ● Packing speed20-60pcs/minute
    •   ● Max. temp.250
    •   ● Machine Weight700kg
    •   ● Max. Power20kw
    •   ● Power220/380V50-60Hz
    •   ● Machine sizeL2800×W1100×H11720mm
    •

         Options

    •   ● Cap sorting elevator/cap sorting bowl
    •

         Key Features

        ●  use international advance control elements with stable performance.

        ●  sealing knife with special design, the sealing is strong without crack.

        ●  automatic feeding and pushing products, feeding film and cutting and sealing.

        ●  stepless mechanical speed adjustment for feeding conveyor.

        ●  convenient and easy operation, just need 2-3minuts for changing different specification.

        ●  feeding conveyor can be customized in left or right.

        ●  suitable for PE film packing.



    •     Application

    •    It can matched with production line to do the packing for individual product or several
    •     products on one support. For example paper carton, bear bottles, beverages, cosmetics
    •     containers etc.
    •
