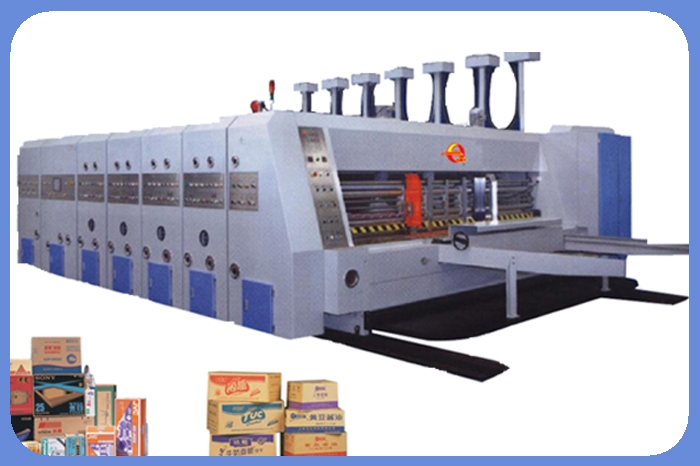

GYMK Automatic Flexo Printing and Slotting and die cutting machine for carton box making

Name:GYMK Automatic Flexo Printing and Slotting and die cutting machine for carton box making

Product Description

Introduction for integral machine

●  Machine adopts PLC program control, the drive to adjust the phase body, touch screen and button dual system operation; controllable

      roller intelligent automatic landing, the Indian version scrub the memory reset automatically, personalized Qi paper, fixed to complete

      the Auto Standby function.

●  Main drive gear made of high quality alloy steel (20CrMnTi), by program-controlled carburizing and quenching, grinding treatment, the

      accuracy can be achieved six high hardness, high-precision gears (tooth surface hardness HRC58-62).

●  Touch-screen display setting value, the control plate of each group and the position of the adjustment slot knives; can set the production

      rate, and a count and prompts.

●  Pull the paper delivery round of self-locking quick transfer function, avoid the destruction of the screw fastening devices operating on the

      roller and a great inconvenience.

●  Application of free connection device, eliminating the gap generated by the traditional connection to maintain long-term precision printing

      chromatic.

●  Gearing body splash with spray devices; lubrication system automatically cycles and installation of seepage oil bodies.

●  The units used between the cylinder lock and locking machine with a strong self-locking mechanism, to ensure the stability of the unit.


Paper feeder

  Negative pressure vacuum suction feed system and feed with skip function.

●  Adopt imported light rail linear bearing feeding, so that paper feeding is correct, and smooth.

●  Automatic document feeder institutions simultaneously with the ink roller in order to work effectively to ensure the printing quality, reduce

      waste and defective products occur.

●  In addition to setting the cleaning litter institutions, and in accordance with the actual situation of wind adjustment.

●  Power adjustment bezel around, working position tailgate can be set free paper manual or electric homogeneous way, the operating

      frequency can be set arbitrarily.

●  Feed roller is designed around the axis structure, the soft tube is combined with both a good stretch and abrasion resistance.

●  Data can display machine speed and production quantity.


Servo edge feeder institutions

●  Use with fast response, high positioning accuracy, system stability, long service life of the servo motor, replace mechanical cam with

      electronic cam control.

●  Feeding the servo motor shaft axle and connected by timing belt, eliminating the work of any of the feed roller gaps, improve feed accuracy,

      and avoid wandering around the phenomenon of cardboard.

●  Unique quick-change semi-round structure, to ensure the consistency of feed location, feed wheel circumference to avoid inconsistencies

      in surface wear and replacement is very easy and fast.


Printing Part

●  Printing phase, the axial position with PLC programmable logic controller to control; machine touch screen, power button and dual action;

      print roller with automatic reset after wiping version of the memory function.

●  Linkage with the feeder roller lift, open or stopped when the feed roller and the printing plate according to the order automatically from, together.

●  Pull transfer paper designed to self-locking quick round of transfer function, avoid the destruction of the top compression roller fixtures.

●  Operations set the ink rollers and ink pump start and stop function; Indian Roller phase, digital display to adjust the axial position.

●  Department of foot plate electric switch device can be quickly linked version, adjusted to facilitate the work of changing version and scrub.

●  Printing phase with magnetic clutch brake mechanism, separation machine gear position can be automatically locked to prevent the loss

      of zero plate.

●  Department of device penetration ink ink ink splash pad and back across agencies, to prevent water overflow, and fly ink of ink printing quality.

●  Print board Roller, embossing rollers made of high quality alloy steel, the surface grinding and hard chrome plating; dynamic balance at coarse

      and fine adjustment on the two devices to ensure the best balance.

●  Number of significant features with planetary gear-type Phase adjustment of printing plate roller for electric phase adjustments.

●  Has several significant features of the axial fine-tune the body, the Indian Roller axial electric adjustment.


Slotting Part

●  Configuration self-locking preload adjusting structure quickly to ensure that the disk, between the long axis of the precision, the pressure line

      slowed the destruction of cardboard.

●  Parcel line of high quality polyurethane wheels pressure to protect the board from damage plasticity.

●  About synchronization with the axial electric shift linkage, so bottom line pressing roller, the upper and lower slot knife, guide roller synchronization

      adjustment.

●  Number of significant features with planetary gear-type phase adjusting mechanism, the phase of the slot, slotted box high for electric adjustment.

●  Selection of high quality alloy steel slotted knife, tooth blade width 7mm.

●  Equipped with self-lubricating wear-resistant guide block to ensure the pressure wire wheel, slotted knife wheel, the shift guide roller to the

      right and increase durability.

●  Creasing wheel, slotted wheel made of high quality alloy steel, the surface grinding and hard chrome plating; dynamic balance at coarse and fine

      adjustment on the two devices to ensure the best balance.

●  Slotted panel operation with the Ministry of feed on, off and host to move the button, with multi-point adjustment operation function. (Without cutting )


Die-cutting Part

●  Unique built-in differential compensation device, when the diameter changes in pads excellent, can automatically compensate for line speed,

      slowing the excellent wear pads, to ensure that each batch of exactly the same die size of the workpiece.

●  When cutting the Department is in the standby state, the template will automatically roll roller disengaged with the pads in the same time reduce

      the load loss machine, prolong the Urethane and the die cutter life.

●  Work in the cutting department, excellent pads set to automatically roll displacement state; excellent pads roll roller speed differential with the

      template design; device from the automatic cutting mechanism of the cushion roll repair device can be carried out on Urethane multiple repair;

      excellent pads roll through the optimal design of cutting the workpiece to ensure product quality.

●  With the number of planetary gear display Phase adjustment of the phase adjustment of electric roller template.

●  Digital display of the template body roll axial fine-tuning of roller axial electric adjustment template.

●  Cutting roller, roller pads are made of high quality steel, after first normalizing internal, cylindrical for cutting, the hard chrome plating, after grinding,

      balancing, respectively coarse and fine adjustment on the two devices, so that the workpiece optimal state of balance.

●  Operations panel set cutting feed on, off and host to move the function and configuration of the printing, slotting the Ministry of phase adjustment

      button.

●  Installed automatic correction function with anti-post moves to clear waste conveyor.

  Standard     900*2000   900*2400  1200*2400  1200*2800  1400*2800  1600*2800
 Machine max speed  180  180  160   160   150   140
 Machine economic printing speedpcs/min  140  140  130  130  120  110
 Max paper feeding size  mm  1000*2000  1000*2400  1200*2400  1200*2800  1400*2800  1600*2800
 Min paper feeding size  mm  280*685  280*685  280*685  280*685  280*685  280*685
