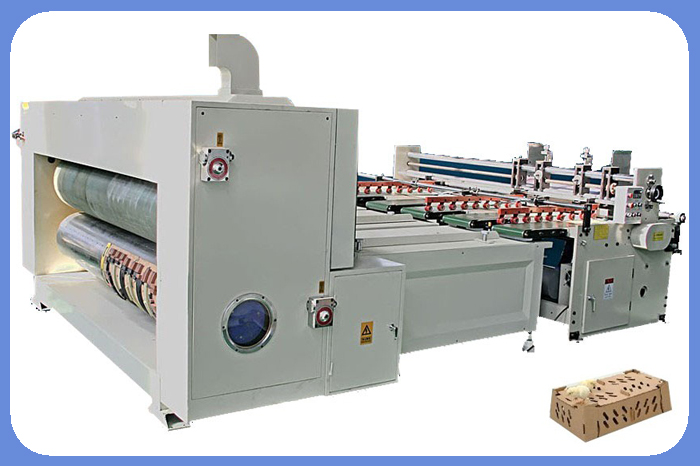

Automatic Rotary Die Cutting Machine pizza box making machine

Name:Automatic Rotary Die Cutting Machine pizza box making machine

Product Description

Features:

● Vacuum sucking with auxiliary kick-style paper feeding system .The wind flow can be adjusted for smooth feeding subject to paper size and the bending

     degree.

● The side shutter is adjustable manually. The front shutter can be synchronically adjusted for three layers and five-layer corrugated paper as well as for the

     clearance of manual movement.

● Phase adjustment device, planetary gear.

● Mechanical drive transmission rubber rollers can move left-and-right for 30mm with radial differential adjustment device that maximizes the balance of the

     wearing on rubber rollers.

● Long life rubber rollers

● Symmetrical adjustment enhances running stability

● Automatic recording or setting output quantity.

● Once-another-sheet paper-feeding device provides the options of consecutive feeding and interval feeding.


Model Unit(mm )

1200*2300

1200*2800

1400*2300

1400*2800

1600*2800

1600*3050

Breadth (mm )

2300

2800

2300

2800

2800

3050

Maximum feeding size(mm )

1200*2000

1200*2400

1400*2100

1400*2400

1600*2400

1600*2900

Minimum feeding size (mm )

320*320

320*320

400*400

400*400

450*450

450*450

Maximum output speed (sheet)

120sheets/min

120sheets/min

110sheets/min

110sheets/min

100sheets/ min

100sheets/ min

Template screw hole clearance(mm)

100*100.1

100*100.1

100*105

100*105

100*107

100*107

Size of the machine area

4300*2090*2280

4700*2090*2280

4200*2290*2280

4700*2190*2350

4700*2290*2400

4950*2290*2300

Note: above models do width size according to customer to do a narrow width. The widest can be 3500mm.
