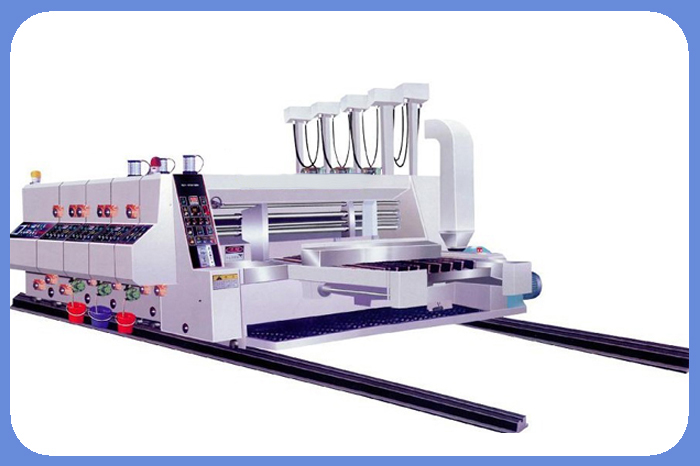

GYK-C High speed automatic 3 color printing slotting machine

Name:GYK-C High speed automatic 3 color printing slotting machine

Product Description

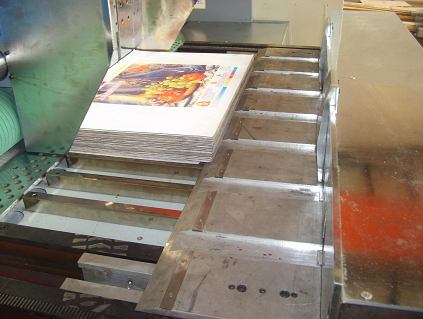

 Feeding unit:


Slotting unit:







    Available Industry:

     carton factory, printing factory, package factory



    Main feature:

      produce variety of carton, such as fruit carton, beer carton, drink carton, food carton,

     garment carton, electronics carton and so on.



    General features:

         The machine is manufactured with the aims to meet the tough operation

           requirement, reliable, good function and safe

   ●  Hence, standard parts ,fast set-up and easy to operate are our advantages

   ●  Best material and part are used

   ●  Transmission gear are hardened and ground (hardness>60HRC)

   ●  Automatic zero setting and return to the pre-set position after open Chrome plated

          shafts

   ●  The machine is also equipped with an automatic lubricating system that keeps the

           lubricant levels in each unit unform at times

   ●  PLC with multifunction touch screen control

   ●  European standard specifications for all electrical and pneumatic components

   ●  Repeat orders storing and recalling for fast set-up

   ●  Main motor is inter-locked, only operatable when units are locked close


GYK-C HIGH SPEED PRINTING SLOTTING MACHINE

Modal

GYK--C-1200*2800

 GYK--C-1400*2800

GYK--C-1600*3000

Color

Four-color

Four-color

Four-color

Max production speedpage/min

140

120

110

Max feeding size (mm)

1200*2500

1400*2500

1600*2700

Skip feeding(mm)

1400*2500

1600*2500

1800*2700

Min. feeding size(mm)

350*650

400*650

450*650

Max. printing size(mm)

1150*2400

1350*2400

1550*2600

Suitable paperboard thicknessmm

2-12

2-12

2-12

Minimum grooving height(MM)

100

100

100

Maximum grooving depth

0-300

0-350

0-400

Standard printing plate thickness(mm)

7

7

7

Axial drifting of plate roller(mm)

±10

±10

±10

Minimal slotting opens a spur (MM)

Set a knife right (l * width of long * w *)

Oppose a knife (l * width of long * w *)

160*160*160*160

170*170*170*170

180*180*180*180

250*60*250*60

260*60*260*60

270*60*270*60

Power of main motorkw

22

30

35

Overall power kw

30

40

45

In addition the machine had better have stacking machine supporting together. Otherwise the speed to no hurry after paper.
